Details for CBX350-125

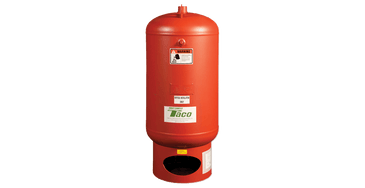

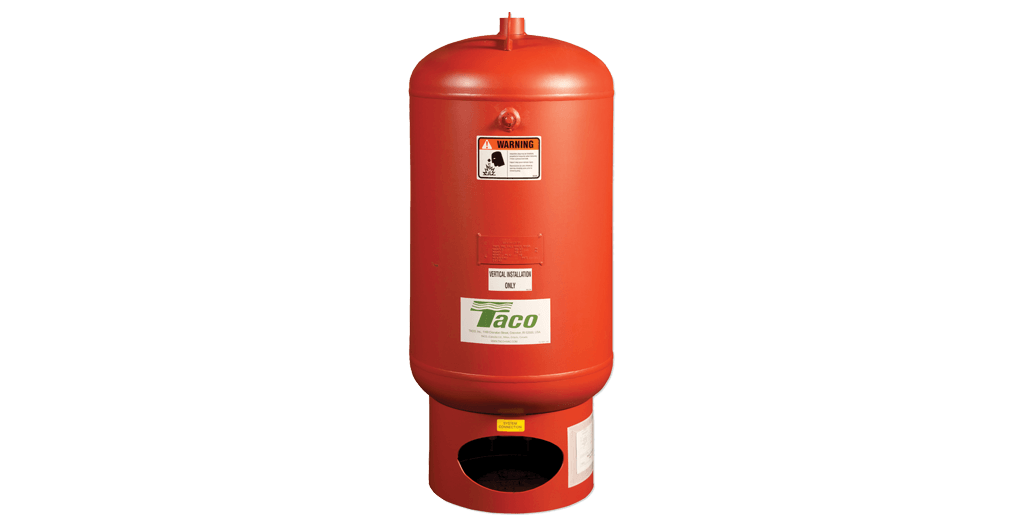

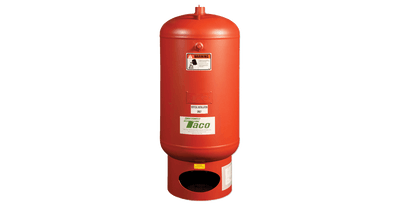

CBX EXPANSION TANK 350L (92GAL) 125PSI
For Permanent Separation of Air and Water
Taco CBX Series Expansion Tanks are bladder type tanks that provide permanent separation of air and water. Designed for use in hydronic systems, hydro-pneumatic and draw down applications, they are tough, durable, long-lasting and come in a variety of sizes and capacities to fit your application. They feature a removable heavy-duty Butyl rubber bladder, fabricated steel shell. Each is factory pre-charged to job specifications. Standard bladder: 125 PSIG (862 kPa). Optional bladder: 150 PSIG (1,034 kPa).
Taco CBX Series Expansion Tanks are designed, constructed and tested to ASME Section VIII, Div. 1 requirements. Computerized product selection helps you choose the expansion tank that is just the right fit for your application requirements. All fabrication is done in-house to assure a high level of quality.
Performance Data
Capacity: 4-212 Gallons (15-800 Liters)
Diameters: 14-30″
Height: 15-86″
Working Pressure: 125,150 (PSI) Higher Pressures Optional
Max. Operating Temp.: 240°F
Features
- Designed, constructed and tested to ASME Section VIII, Div. 1 requirements.
- Heavy Duty butyl rubber bladder
- Partial Acceptance bladder design (field replaceable)
- All fabrication done in house
- Computerized selections to ensure fast and easy design
- National Board Registration
- CRN registration (optional)
Applications
- Hydronic Expansion Tank
- Non-Potable Hydropneumatic and Drawn Down Applications
Specifications
| Item Number | CBX350-125 |
| Brand | Taco |
| Series | CBX Expansion Tank |
| Type | Expansion Tank |
