Series 5121-F2 Lead-Free Mixing Valve (No Fittings)

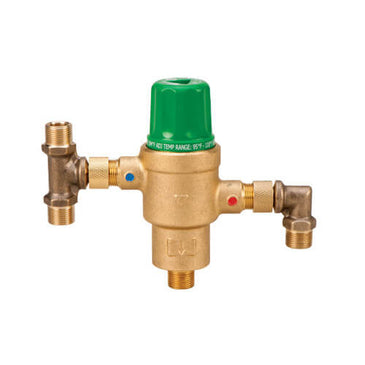

**Image is representative - does not include tee and elbow**

The compact 5121 mixing valve is certified to ASSE 1070, CAS B125.3, NSF 61 and is listed by ASSE, CSA and IAPMO. The ASSE 1070 listing allows for point of use applications within homes, hospitals, schools, nursing homes, public facilities, etc. where a 1070 valve is required.

Performance:

• Max. Flow: 5.8 GPM (22 L/min) -- Flow should never exceed standards for pipe size
• Min. Flow: .34 GPM (1.3 L/min) -- Flow should never exceed standards for pipe size
• Hot Supply Temperature: 120-180 F (49-82 C)
• Cold Supply Temperature: 39-85 F (4-29 C)
• Max. Inlet Pressure: 230 psi (15.8 Bar)
• Max. Variation in Supply Pressure: 20%
• Min. Temperature Differential Between Hot Supply and Mixed: 10 F (5.6 C)
• Outlet Temperature Range: 95-118 F (35-47.8 C)
• Factory set to: 110 F (43.3 C)
• Accuracy of Outlet Temperature: ( + ) 3 F (2 C)

Features:

• < .25% lead
• ASSE 1070 Listed
• Compact Design
• Suitable for use in Potable Water
• Mounting Bracket
• Connects to 3/8" Flexible Hose or
• Compression 3/8" OD Tube
• Check Valves Included
• Inlet Strainers Included
• Tamper Resistant Cap

Application:

The 5121 Mixing Valve is a compact thermostatic valve designed to delivertempered water at constant temperatures. It is specifically intended for usewith individual faucets whenever an ASSE 1070 valve is required. The valvesdesign and advanced thermostatic element ensures a stable mixed watertemperature throughout the valves adjustable range and when used withinthe valves specifications.
