5122-T2 | 1/2" NPT Union 5122 Mixing Valve (Low Lead) | Taco
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 5122-T2
Overview Details for 5122-T2

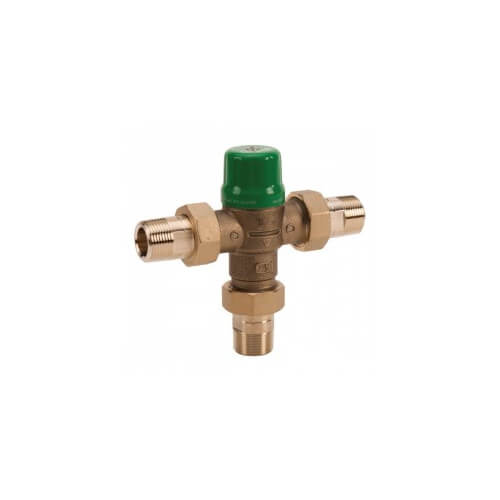

1/2" NPT Union 5122 Mixing Valve (Low Lead)
Note: Image does not represent actual product.
Taco may be renowned for their circulators, but those are not the only pieces of efficient, reliable hydronic mixing equipment that they make. The 5122-T2 is a brass mixing valve, ideal for a wide range of domestic hot water applications. An integral thermostatic element monitors and regulates water temperature. The 5122-T2 is capable of handling a supply temperature of up to 180 degrees Fahrenheit to ensure potability, and ASSE 1017 certification guarantees that the water will be mixed down to a usable temperature before flowing through your system. The valve's temperature control may be locked to prevent fluctuations in mixing temperature. Dependable temperature mixing for your hydronic system is as easy as adding a 5122-T2.
Features:
- Lead-Free Compliant (?.25% Lead)
- Suitable For Use in Potable Water
- No Routine Maintenance Required
- Lockable Maximum Temperature Setting
- Outlet Temperature StripAvailable 1/2", 3/4", 1"
- NSF 61 Certified
- High Flow
- Snap on Protective Cover
- No Routine Maintenance Required
Includes:
- (1) Taco 5122-T2 Lead Free Mixing Valve
- (1) Outlet Temperature Strip
Applications:
- Domestic Hot Water
- Handled Fixtures
- Handleless Fixtures
- Point of Distribution
Specifications
Item Number | 5122-T2 |
Brand | Taco |
Application | Point of Source |
Body Pattern | 3-Way |
Connection Method | Threaded |
Connection Type | MNPT x MNPT |
Flow Capacity (Cv) | 1.8 |
Lead Free | Yes |
Material | Forged Brass |
Max Flow (GPM) | 14 |
Max Pressure (PSI) | 200 |
Size | 1/2" |
Standards Met | ASSE 1070 |
Type | Accessory |
