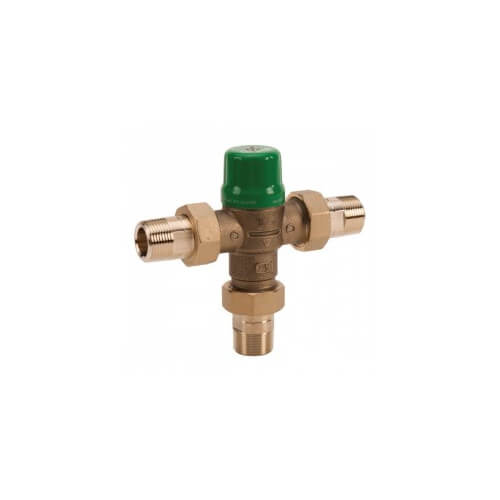

5003-HX-T3 | 3/4" NPT Male Union 5003 Heating Only Mixing Valve | Taco

Brand: TacoSKU: 5003-HX-T3

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 5003-HX-T3

Jump to: Overview & Specifications Reviews

Overview Details for 5003-HX-T3

3/4" NPT Male Union 5003 Heating Only Mixing Valve

Note: Image does not represent actual product.

Taco's 5000 Series Heating Only version of mixing valves provides the high performance temperature stability required for today's radiant heating systems. It makes this mixing valve is an ideal choice for a radiant heating system whether in slab, over pours or in joist bay heating installations. Add to that multiple connection types such as straight NPT, union (sweat, threaded, CPVC or Pex) and you have a series of mixing valve that will fit most of your installation needs.

Features

Delivers Stable Mixed Water Temperature
Extended Mix Temperature Range of 85-176°F (29-80°C)
Tamper-Resistance Cap
Low Headloss
Outlet Temperature Strip

Applications:

Low Temperature and Radiant Systems
In Slab
Over Pours
Joist Bay Heating Installations

Specifications

Item Number	5003-HX-T3
Brand	Taco
Accuracy	±3°F
Application	Heating Only
Body Pattern	3-Way
Connection Method	Threaded
Connection Type	MNPT x MNPT
Flow Capacity (Cv)	2.3
Material	Forged Brass
Max Flow (GPM)	20
Max Pressure (PSI)	230
Max Temp (F)	180°F
Size	3/4"
Type	Accessory
