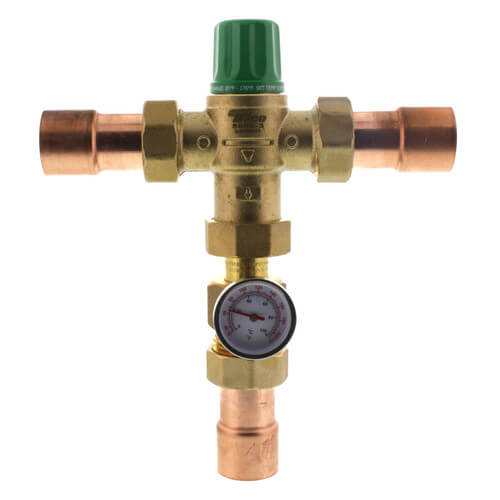

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 5004-C3-G
Overview Details for 5004-C3-G
1" Sweat Union 5004 Mixing Valve w/ Gauge (Low Lead)
Taco may be renowned for their circulators, but those are not the only pieces of efficient, reliable hydronic mixing equipment that they make. The 5004-C3-G is a low head loss brass mixing valve, ideal for a wide range of hydronic heating and domestic hot water applications. An integral thermostatic element monitors and regulates water temperature. The 5004-C3-G is capable of handling temperatures up to 176 degrees Fahrenheit to ensure potability, and ASSE 1017 certification guarantees that the water will be mixed down to a usable temperature before flowing through your system. The valve features a tamper resistant cap to prevent alterations to the mixing temperature. Dependable temperature mixing for your hydronic system is as easy as adding a 5004-C3-G.
Features:
- less than .25% lead
- ASSE 1017 Listed
- Ideal for Domestic Water Distribution Points
- Suitable for use in Potable Water
- Delivers Stable Mixed Water Temperature
- Extended Mix Temperature Range of 85-176°F (29-80°C)
- Tamper-Resistance Cap
- Union and NPT Options
- Sweat, NPT, Pex, CPVC Union Connections
- Low Headloss
- Outlet Temperature Strip
- Optional Dial Gauge and Adaptor
Includes:
- (1) Taco 5004-C3-G Lead Free Mixing Valve
- (1) Temperature Gauge
- (1) Outlet Temperature Strip
Applications:
- Low Temperature and Radiant Systems
- Domestic Hot Water
Specifications
Item Number | 5004-C3-G |
Brand | Taco |
Application | Point of Source |
Body Pattern | 3-Way |
Connection Method | Sweat |
Connection Type | C x C |
Flow Capacity (Cv) | 2.3 |
Includes | Gauge |
Lead Free | Yes |
Material | Forged Brass |
Max Flow (GPM) | 24 |
Max Pressure (PSI) | 200 |
Size | 1" |
Standards Met | ASSE 1017 |
Type | Accessory |
