5002-H3-G | 1/2" Press 5002 Mixing Valve w/ Gauge (Low Lead) | Taco

Brand: TacoSKU: 5002-H3-G

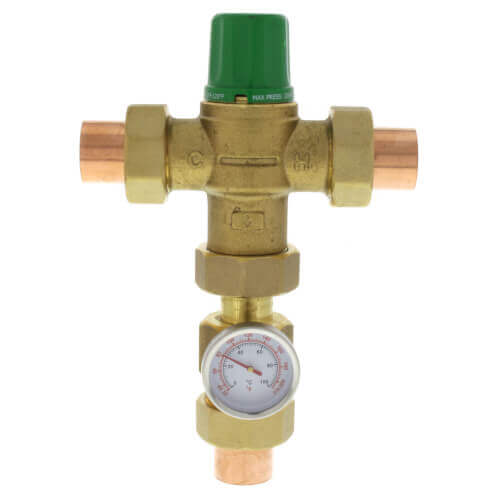

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 5002-H3-G

Jump to: Overview & Specifications Reviews

Overview Details for 5002-H3-G

1/2" Press 5002 Mixing Valve w/ Gauge (Low Lead)

Note: Image may not reflect actual product.

This versatile NSF 61 and ASSE 1017 mixing valve provides the ultimateperformance for domestic hot water applications. The 5000 Series ASSE 1017certification allows for domestic hot water storage at temperatures highenough to increase the effective storage capacity of a water heater, killharmful bacteria and still be delivered at a safe 120°F or less. The valvesunique design and advanced thermostatic element ensures a stablemixed water temperature throughout the extended 85°-176°F range.

Product Features

ASSE 1017 Listed
Ideal for Domestic Water Distribution Points
Suitable for use in Potable Water
Delivers Stable Mixed Water Temperature
Extended Mix Temperature Range of 85-176°F
Tamper-Resistance Cap
Union and NPT Options
Sweat, NPT, Pex, CPVC Union Connections
Low Headloss
Outlet Temperature Strip
Optional Dial Gauge and Adaptor

Specifications

Item Number	5002-H3-G
Brand	Taco
Application	Point of Source
Body Pattern	3-Way
Connection Method	Press
Connection Type	Press x Press
Flow Capacity (Cv)	2.3
Includes	Gauge
Lead Free	Yes
Material	Forged Brass
Max Flow (GPM)	20
Max Pressure (PSI)	230
Size	1/2"
Standards Met	ASSE 1017
Temperature Range (F)	85°F - 176°F
Type	Accessory
