CA3KN31JD | ELECTROMAGNETIC RELAY | Square D by Schneider Electric

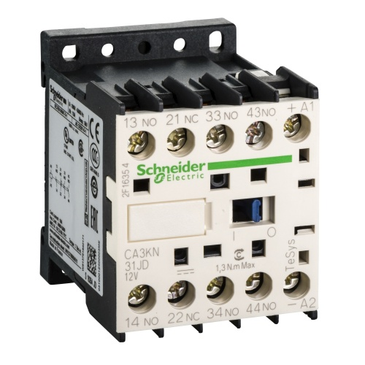

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to CA3KN31JD
Documents and manuals
Square D CA3KN31JD Documents
Overview
Details for CA3KN31JD
ELECTROMAGNETIC RELAY
TeSys K control relay - 3 NO + 1 NC, <= 690 V, 12 V DC standard coil TeSys K control relay, 4 contacts (3NO + 1NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 12V DC control circuit with no inrush consumption, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -25/+50°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium product (RoHS/REACh).Specifications
- range
- TeSys
- product name
- TeSys CAK
- Product or Component Type
- Control relay
- device short name
- CA3K
- contactor application
- Control circuit
- utilisation category
- DC-13;AC-15
- pole contact composition
- 3 NO + 1 NC
- [Ue] rated operational voltage
- <= 690 V <= 400 Hz
- control circuit type
- DC standard
- [Uc] control circuit voltage
- 12 V DC
- [Ith] conventional free air thermal current
- 10 A 122 °F (50 °C)
- Irms rated making capacity
- 110 A IEC 60947
- associated fuse rating
- 10 A gG IEC 60947;10 A gG VDE 0660
- [Ui] rated insulation voltage
- 690 V IEC 60947;750 V VDE 0110 group C;690 V BS 5424;600 V CSA C22.2 No 14
- Mounting Support
- Plate;Rail
- connections - terminals
- screw clamp terminals 1 0.00…0.01 in² (1.5…4 mm²)solid;screw clamp terminals 2 0.00…0.01 in² (1.5…4 mm²)solid;screw clamp terminals 1 0.00…0.01 in² (0.75…4 mm²)flexible with cable end;screw clamp terminals 2 0.00…0.01 in² (0.75…4 mm²)flexible without cable end;screw clamp terminals 1 0.00…0.00 in² (0.34…1.5 mm²)flexible with cable end;screw clamp terminals 2 0.00…0.00 in² (0.34…1.5 mm²)flexible without cable end
- tightening torque
- 11.51 lbf.in (1.3 N.m) screw clamp terminals flat Ø 6 mm;11.51 lbf.in (1.3 N.m) screw clamp terminals Philips No 2 0.24 in (6 mm);11.51 lbf.in (1.3 N.m) screw clamp terminals pozidriv No 2
- control circuit voltage limits
- Operational 0.8...1.15 Uc 122 °F (50 °C));Drop-out 0.1...0.75 Uc 122 °F (50 °C))
- operating time
- 10 ms coil de-energisation and NO opening;30...40 ms coil energisation and NO closing;15 ms coil de-energisation and NC closing;25...35 ms coil energisation and NC opening
- mechanical durability
- 20 Mcycles
- maximum operating rate
- 10000 cyc/h
- immunity to microbreaks
- 2 ms
- inrush power in W
- 3 W 68 °F (20 °C))
- hold-in power consumption in W
- 3 W 68 °F (20 °C)
- heat dissipation
- 3 W
- minimum switching voltage
- 17 V
- minimum switching current
- 5 mA
- non overlap distance
- 0.02 in (0.5 mm)
- insulation resistance
- > 10 MOhm
- Height
- 2.28 in (58 mm)
- Width
- 1.77 in (45 mm)
- Depth
- 2.24 in (57 mm)
- Net Weight
- 0.50 lb(US) (0.225 kg)
- standards
- BS 5424;IEC 60947;NF C 63-140;VDE 0660
- Product Certifications
- UL;CSA;UKCA
- IP degree of protection
- IP2x
- protective treatment
- TC IEC 60068
- Ambient air temperature for operation
- -13…122 °F (-25…50 °C)
- Ambient Air Temperature for Storage
- -58…176 °F (-50…80 °C)
- operating altitude
- 6561.68 ft (2000 m) without derating
- flame retardance
- V1 conforming to UL 94;Requirement 2 conforming to NF F 16-101;Requirement 2 conforming to NF F 16-102
- mechanical robustness
- Vibrations contactor open2 Gn;5...300 Hz IEC 60068-2-6;Vibrations contactor closed4 Gn;5...300 Hz IEC 60068-2-6;Shocks contactor open10 Gn for 11 ms IEC 60068-2-27;Shocks contactor closed15 Gn for 11 ms IEC 60068-2-27
- Category
- 22371-RELAYS;CONTROL
- Discount Schedule
- I12
- GTIN
- 3389110484359
- Returnability
- Yes
- Country of origin
- FR
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 2.44 in (6.2 cm)
- Package 1 Width
- 2.60 in (6.6 cm)
- Package 1 Length
- 1.89 in (4.8 cm)
- Package 1 Weight
- 7.72 oz (219 g)
- Unit Type of Package 2
- S02
- Number of Units in Package 2
- 40
- Package 2 Height
- 5.91 in (15 cm)
- Package 2 Width
- 11.81 in (30 cm)
- Package 2 Length
- 15.75 in (40 cm)
- Package 2 Weight
- 20.15 lb(US) (9.139 kg)
- Unit Type of Package 3
- P06
- Number of Units in Package 3
- 320
- Package 3 Height
- 17.72 in (45 cm)
- Package 3 Width
- 31.50 in (80 cm)
- Package 3 Length
- 23.62 in (60 cm)
- Package 3 Weight
- 180.56 lb(US) (81.9 kg)
- Warranty
- 18 months
