SX-30V | Expansion Tank Extrol SX Hydronic 14 Gallon 100 Pounds per Square Inch Gauge 1" FNPT SX-30V Non-ASME for Closed Hydronic Heating Radiant and Chilled Water Systems | Amtrol

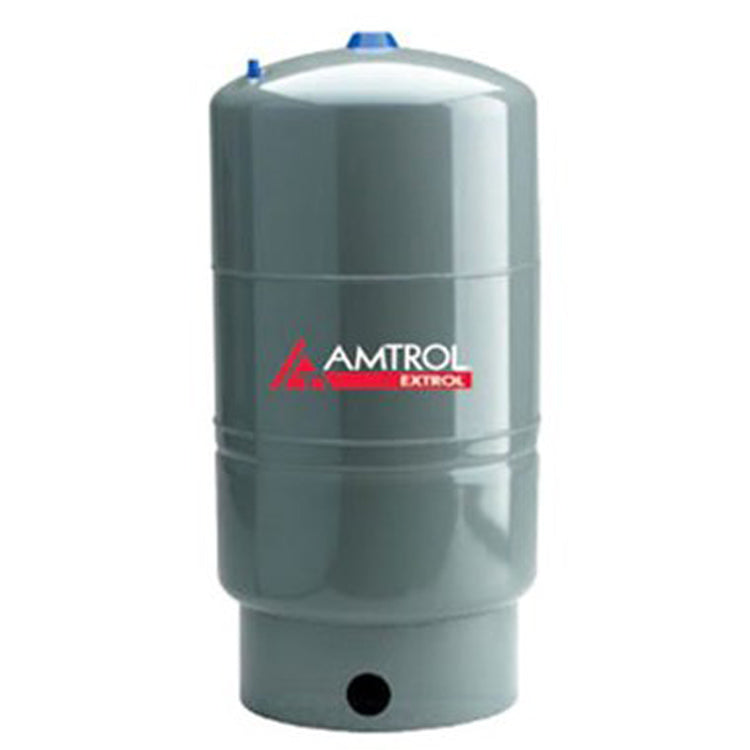

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SX-30V
Documents and manuals
Amtrol SX-30V Documents
Overview
Details for SX-30V
Amtrol SX-30V Expansion Tank: A Reliable Solution for Hydronic Water Systems
The Amtrol SX-30V Expansion Tank is a heavy-duty, non-ASME expansion tank engineered to manage pressure in closed hydronic heating, radiant, and chilled water systems.
Crafted from durable steel with a 1" FNPT inlet/outlet connection, this tank features a butyl/EPDM diaphragm for longevity and resilience against system fluctuations. Factory precharged to 12 psig, the SX-30V effectively accommodates system pressure increases due to expanding water as temperatures rise.
With a capacity of 14 gallons, this expansion tank is suitable for high output boilers up to 1,500,000 BTU's. Its compact design, measuring 15" in length, 15" in width, and 25" in height, allows for easy installation in various system configurations.
Key Features:
* Non-ASME construction for versatile applications
* 14-gallon capacity for large-scale water systems
* 100 psi gauge pressure rating
* 1" FNPT system connection for secure installation
* Factory precharged to 12 psig for immediate use
* Butyl/EPDM diaphragm for extended lifespan
* Steel construction for durability and corrosion resistance
Shop now at Our trusted HVAC store for the best prices and fast shipping on the Amtrol SX-30V Expansion Tank!
Expansion Tank Extrol SX Hydronic 14 Gallon 100 Pounds per Square Inch Gauge 1" FNPT SX-30V Non-ASME for Closed Hydronic Heating Radiant and Chilled Water Systems
Specifications
Item Number | SX-30V |
Brand | Amtrol |
Application | Closed Hydronic Heating; Radiant and Chilled Water Systems |
Collection | Expansion Tank Parts & Accessories |
Diaphragm Material | Butyl/EPDM |
Height | 25IN |
Inlet/Outlet Connection | 1IN FNPT |
Length | 15IN |
Material | Steel |
Part Number | SX-30V |
Precharge Pressure | 12PSIG |
Pressure | 100PSIG |
Product Type | Hydronic |
Standard | Non-ASME |
Tank Capacity | 14GAL |
Temperature | 240DEG F |
Width | 15IN |
