D12CP2PH9 | Motor General Purpose 1/2 Horsepower 1725 Revolutions per Minute 115/230 Volt Capacitor Start Capacitor Run | Us Motor

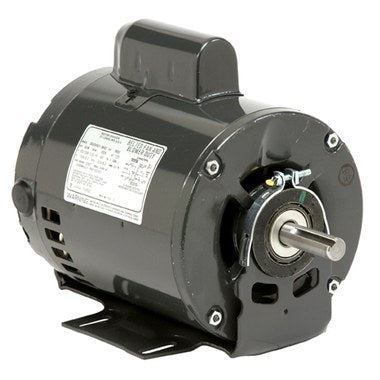

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to D12CP2PH9
Overview Details for D12CP2PH9
**US Motor D12CP2PH9 General Purpose Motor**
This Motor General Purpose by US Motor, model D12CP2PH9, is designed for industrial applications. It features 1/2 horsepower, 1725 revolutions per minute, 115/230 volts, capacitor start, and capacitor run.
**Key Features:**
* 1/2 horsepower
* 1725 revolutions per minute
* 115/230 volts
* Capacitor start, capacitor run
* Open Drip Proof enclosure
* Clockwise/Counterclockwise rotation
* 5.0/2.6AMP amperage
* 56H frame type
* Class B insulation
* 60HZ frequency
* Ball bearing type
* Continuous duty
* Resilient Base mounting type
**Benefits:**
* Durable and reliable
* Efficient operation
* Versatile applications
* Clockwise/Counterclockwise rotation for flexibility
* Open Drip Proof enclosure for protection in various environments
* Meets industry standards
**Applications:**
* Manufacturing
* Conveying
* Material handling
* Processing equipment
* HVAC systems
* And more
Our trusted HVAC store offers the D12CP2PH9 General Purpose Motor at competitive prices with fast shipping. Contact us today for more information. Let us be your trusted supplier for all your industrial needs!
Motor General Purpose 1/2 Horsepower 1725 Revolutions per Minute 115/230 Volt Capacitor Start Capacitor Run
Specifications
| Item Number | D12CP2PH9 |
| Brand | Us Motor |
| Amperage | 5.0/2.6AMP |
| Bearing Type | Ball |
| Collection | Motors |
| Duty | Continuous |
| Electrical Type | Capacitor Start Capacitor Run |
| Enclosure | Open Drip Proof |
| Frame Type | 56H |
| Frequency | 60HZ |
| Horsepower | 1/2HP |
| Insulation Class | B |
| Mounting Type | Resilient Base |
| Number of Poles | 4P |
| Number of Speeds | 1SPD |
| Phase | 1PH |
| Product Type | General Purpose |
| Rotation | Clockwise/Counterclockwise |
| Speed | 1725RPM |
| Voltage | 115/230V |
