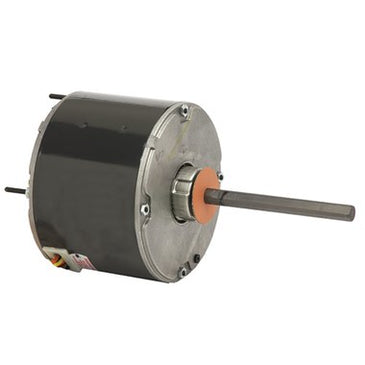

3404 | Motor Condenser Fan 1/4 Horsepower 1100 Revolutions per Minute 208-230 Volt 5.6 Inch Permanent Split Capacitor | Us Motor

Brand: Us MotorSKU: 3404

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3404

Jump to: Overview & Specifications Reviews

Overview Details for 3404

**Motor Condenser Fan** **SKU: 3404** **Brand: Us Motor** **Technical Specifications:** * Horsepower: 1/4 HP * RPM: 1100 * Voltage: 208-230 V * Diameter: 5.6 Inch * Electrical Type: Permanent Split Capacitor * Rotation: Clockwise Lead End * Enclosure: Totally Enclosed Air Over * Amperage: 0.8 AMP * Number of Poles: 6P * Number of Speeds: 1SPD * Overload Protection: Automatic Reset * Frame Type: 48YZ * Insulation Class: B * Frequency: 60HZ * Bearing Type: SAB * Duty: Continuous * Mounting Type: Stud **Features and Benefits:** * High-efficiency fan motor designed for condenser applications * Durable construction with a sturdy motor housing * Efficient operation with a low noise level * Versatile design suitable for a wide range of applications **Applications:** * Condenser units * Air handling equipment * Industrial ventilation systems * HVAC systems **Get your Motor Condenser Fan today from Our trusted HVAC store!** We offer the best prices and fast shipping for all your industrial supply needs.

Motor Condenser Fan 1/4 Horsepower 1100 Revolutions per Minute 208-230 Volt 5.6 Inch Permanent Split Capacitor

Specifications

Item Number	3404
Brand	Us Motor
Amperage	0.8AMP
Bearing Type	SAB
Collection	Condenser Fan Motors
Diameter	5.6IN
Duty	Continuous
Electrical Type	Permanent Split Capacitor
Enclosure	Totally Enclosed Air Over
Frame Type	48YZ
Frequency	60HZ
Horsepower	1/4HP
Insulation Class	B
Mounting Type	Stud
Number of Poles	6P
Number of Speeds	1SPD
Overload Protection	Automatic Reset
Product Type	Condenser Fan
Rotation	Clockwise Lead End
Speed	1100RPM
Voltage	208-230V
