299-03005 | Valve assy 2W NO, 1" 10Cv Lin SS Trim FxF, 2-pos Electronic Act SR | Siemens
Flowrite 599 Series Valve Assembly features a 2-position control, spring return, 24 Vac electro-mechanical actuator. The 2-way, normally open, 1-inch, 10 Cv valve assembly is ANSI Class 250 and has a linear characteristic, stainless steel trim, and female x female end connections.

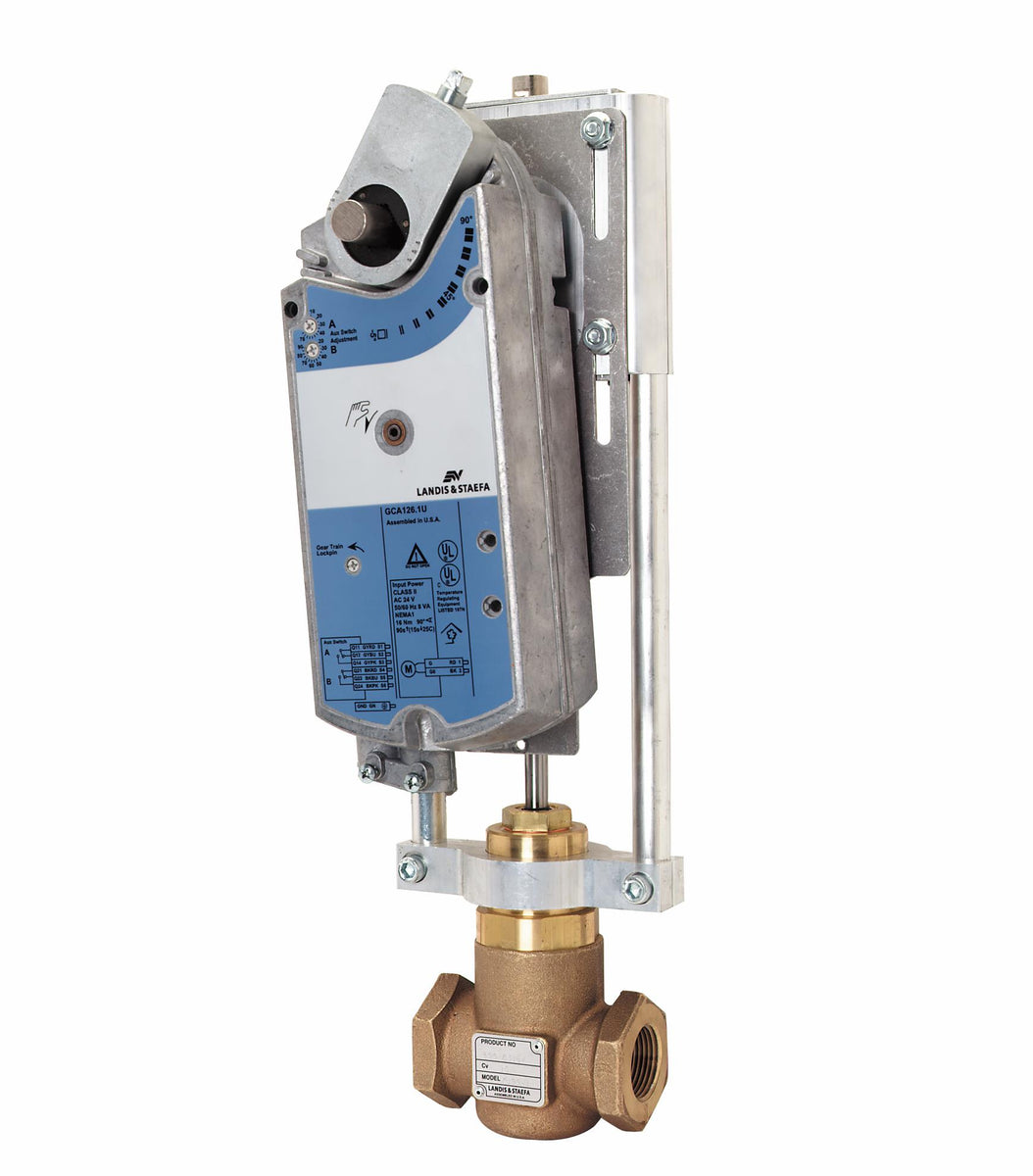

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 299-03005
Documents and manuals
Siemens 299-03005 Documents
Datasheet(Flowrite 599 Series 2-way Valves 1/2 to 2-Inch Bronze Body. Technical Instructions)Datasheet(Flowrite 599 Series Rack and Pinion Valves Technical Instructions)Datasheet(Flowrite Valve and Selection TB 255. Technical Bulletin)Datasheet for Actuator(Flowrite 599 Series Rack and Pinion Valves Technical Instructions) More Info
Overview
Details for 299-03005
Valve assy 2W NO, 1" 10Cv Lin SS Trim FxF, 2-pos Electronic Act SR
Specifications
- Valve Type
- Two-way
- Valve Body Style
- Stroke-Globe
- Port Configuration
- 2-Way Normally open
- End Connection
- FxF
- Connecting thread
- Direct-coupled universal bonnet
- Material, valve body
- UNS CA 844 bronze
- Material, inside set
- Body Trim: Stainless Steel , Stem: Stainless Steel ASTM A582 Type 303 , Normal Duty Packing: EPDM O-ring , Seat: Single seat metal-to-metal
- Medium
- Saturated steam , Water , Water with anti-freeze , Steam
- Leakage rate
- Class IV (0.01% of Cv)
- Rangeability
- >100:1
- High temperature
- NO
- Medium temperature
- 20…250 ºF
- Ambient temperature, operation
- -25 to 130°F, -32 to 55°C
- Stroke
- 3/4 in., 20 mm
- Valve Actuator Type
- Electronic
- Normally Open/Normally Closed
- Normally Open
- Supply Voltage
- 24 VAC
- Power consumption
- 8 VA running, 53 VA holding
