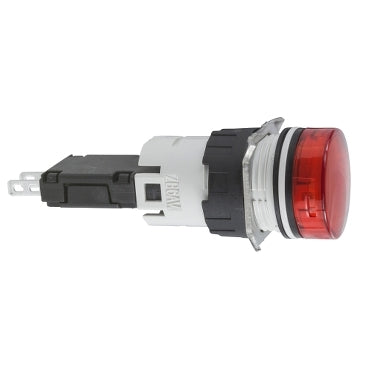

XB6AV4BB | Complete pilot light, Harmony XB6, round red, plastic, 16mm, integral LED 12...24V | Square D by Schneider Electric

Brand: Square DSKU: XB6AV4BB

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to XB6AV4BB

Jump to: Overview & Specifications Reviews

Overview Details for XB6AV4BB

Complete pilot light, Harmony XB6, round red, plastic, 16mm, integral LED 12...24V

This Harmony XB6 red, complete pilot light is part of the range diameter 16mm plastic, Harmony XB6 modular. It has a circular head shape and is supplied with an integral LED and faston connection type. Its reduced diameter 16mm makes it suitable to applications where less space is available for mounting, like small machines and control panels. This range comes with good color purity and offers the advantage of LED brightness. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65.

Specifications

Range of Product: Harmony XB6
Product or Component Type: Complete pilot light
Device short name: XB6
Bezel material: Plastic
Mounting diameter: 0.63 in (16 mm)
Sale per indivisible quantity: 1
Shape of signaling unit head: Round
Cap/operator or lens colour: Red
Light source: LED
Bulb base: Integral LED
light block supply: Direct
[Us] rated supply voltage: 12...24 V AC/DC
Height: 0.71 in (18 mm)
Width: 0.71 in (18 mm)
Depth: 2.24 in (57 mm)
Terminals description ISO n°1: (+ -)PL
Net Weight: 0.03 lb(US) (0.015 kg)
Operating position: Any position
connections - terminals: Faston connectors 2.8 x 0.5 mm
[Ui] rated insulation voltage: 250 V 2)EN/IEC 60947-1
[Uimp] rated impulse withstand voltage: 4 kV EN/IEC 60947-1
Signalling type: Steady
supply voltage limits: 6…30 V AC/DC
Current Consumption: 15 mA
surge withstand: 1 kV direct contact IEC 61000-4-5, 2 kV in free air IEC 61000-4-5
Protective treatment: TC
Ambient Air Temperature for Storage: -40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation: -13…158 °F (-25…70 °C)
electrical shock protection class: Class II IEC 61140
IP degree of protection: IP65 IEC 60529
NEMA degree of protection: NEMA 13 UL 50, NEMA 4 UL 50, NEMA 4X UL 50, NEMA 13 CSA C22.2 No 94, NEMA 4 CSA C22.2 No 94, NEMA 4X CSA C22.2 No 94
standards: EN/IEC 60947-5-1, CSA C22.2 No 14, JIS C 852, UL 508, EN/IEC 60947-1, JIS C8201-5-1, EN/IEC 60947-5-5, JIS C8201-1
Product Certifications: GOST, CSA, CCC, UL
vibration resistance: +/- 3 mm 2…500 Hz)IEC 60068-2-6, 5 gn 2…500 Hz)IEC 60068-2-6
shock resistance: 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
resistance to fast transients: 2 kV IEC 61000-4-4
resistance to electromagnetic fields: 9.14 V/m (10 V/m) IEC 61000-4-3
resistance to electrostatic discharge: 6 kV on contact (on metal parts) IEC 61000-4-2, 8 kV in free air (in insulating parts) IEC 61000-4-2
electromagnetic emission: Class B EN 55011
Category: 22459-PUSHBUTTONS, 16MM
Discount Schedule: CS2
GTIN: 3389110764499
Returnability: Yes
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 0.79 in (2.0 cm)
Package 1 Width: 4.33 in (11.0 cm)
Package 1 Length: 6.30 in (16.0 cm)
Package 1 Weight: 0.39 oz (11.0 g)
Unit Type of Package 2: S01
Number of Units in Package 2: 60
Package 2 Height: 5.91 in (15.0 cm)
Package 2 Width: 5.91 in (15.0 cm)
Package 2 Length: 15.75 in (40.0 cm)
Package 2 Weight: 29.28 oz (830.0 g)
Warranty: 18 months
