XB4BVM3 | Pilot light, Harmony XB4, grey plastic, green, 22mm, universal LED, plain lens, 230...240V AC | Square D by Schneider Electric

Brand: Square DSKU: XB4BVM3

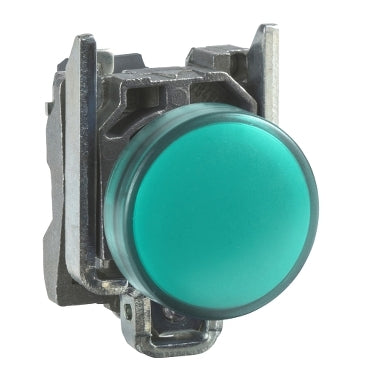

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to XB4BVM3

Jump to: Overview & Specifications Reviews

Overview Details for XB4BVM3

Pilot light, Harmony XB4, grey plastic, green, 22mm, universal LED, plain lens, 230...240V AC

This Harmony XB4 plain lens modular green pilot light is supplied with 230V to 240V AC, uses an integral LED. It has a metal bezel. This pilot light, designed to last without maintenance for a bright indication of process and machine operations, is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.

Specifications

Range of Product: Harmony XB4
Product or Component Type: Pilot light
Device short name: XB4
Bezel material: Chromium plated metal
Fixing collar material: Zamak
Mounting diameter: 0.87 in (22 mm)
Head type: Standard
Sale per indivisible quantity: 1
Shape of signaling unit head: Round
Cap/operator or lens colour: Green
Operator additional information: With plain lens
Light source: Universal LED
Bulb base: Integral LED
Light source colour: Green
[Us] rated supply voltage: 230...240 V AC 50/60 Hz
Height: 1.85 in (47 mm)
Width: 1.18 in (30 mm)
Depth: 2.13 in (54 mm)
Terminals description ISO n°1: (X1-X2)PL
Net Weight: 0.18 lb(US) (0.08 kg)
resistance to high pressure washer: 1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
connections - terminals: Screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1, Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end EN/IEC 60947-1
[Ui] rated insulation voltage: 250 V 3)EN 60947-1
[Uimp] rated impulse withstand voltage: 4 kV EN 60947-1
Signalling type: Steady
Current Consumption: 14 mA
service life: 100000 h at rated voltage and 25 °C
surge withstand: 1 kV IEC 61000-4-5
Device presentation: Complete product
supply voltage limits: 195…264 V AC
Protective treatment: TH
Ambient Air Temperature for Storage: -40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation: -40…158 °F (-40…70 °C)
electrical shock protection class: Class I IEC 60536
IP degree of protection: IP66 IEC 60529, IP67, IP69, IP69K
NEMA degree of protection: NEMA 13, NEMA 4X
IK degree of protection: IK06 IEC 50102
standards: JIS C8201-5-1, CSA C22.2 No 14, EN/IEC 60947-5-5, EN/IEC 60947-5-1, UL 508, EN/IEC 60947-5-4, EN/IEC 60947-1, JIS C8201-1
Product Certifications: CSA, UL Listed
vibration resistance: 5 gn 12…500 Hz)IEC 60068-2-6
shock resistance: 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
resistance to fast transients: 2 kV IEC 61000-4-4
resistance to electromagnetic fields: 9.14 V/m (10 V/m) IEC 61000-4-3
resistance to electrostatic discharge: 6 kV on contact (on metal parts) IEC 61000-4-2, 8 kV in free air (in insulating parts) IEC 61000-4-2
electromagnetic emission: Class B IEC 55011
Category: 22468-PUSHBUTTONS,22MM(METAL) NEW
Discount Schedule: CS2
GTIN: 3389110892000
Returnability: Yes
Country of origin: FR
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.34 in (3.4 cm)
Package 1 Width: 2.13 in (5.4 cm)
Package 1 Length: 3.46 in (8.8 cm)
Package 1 Weight: 2.82 oz (80 g)
Unit Type of Package 2: BB1
Number of Units in Package 2: 5
Package 2 Height: 3.43 in (8.7 cm)
Package 2 Width: 1.34 in (3.4 cm)
Package 2 Length: 10.47 in (26.6 cm)
Package 2 Weight: 14.18 oz (402 g)
Unit Type of Package 3: S03
Number of Units in Package 3: 150
Package 3 Height: 11.81 in (30 cm)
Package 3 Width: 11.81 in (30 cm)
Package 3 Length: 15.75 in (40 cm)
Package 3 Weight: 27.50 lb(US) (12.476 kg)
Warranty: 18 months
