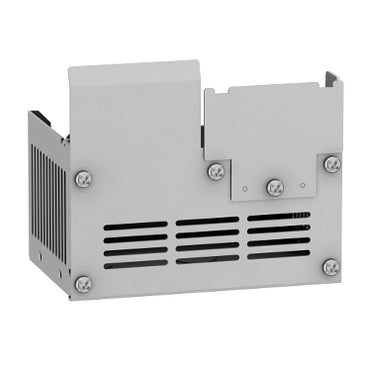

VW3A95815 | kit for UL type 1 conformity, Altivar machine ATV320, mounted under variable speed drive ATV320 S3F | Square D by Schneider Electric
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VW3A95815
Overview
Details for VW3A95815
kit for UL type 1 conformity, Altivar machine ATV320, mounted under variable speed drive ATV320 S3F
This UL conformity kit is part of the Altivar Machine ATV320 range, an offer of drives designed for Original Equipment Manufacturers (OEMs). This optional kit enables your Altivar variable speed drive to meet UL type 1 requirements. Its frame size is 3C (140mm/5.5in wide x 118mm/4.64in high, and 88mm/3.46in deep). Thanks to this kit, cables can be directly connected to the drive via tubes or cable glands. The shielding is connected inside the kit. It weighs 0.550kg (1.213lb). This kit can be used to ensure UL Type 1 conformity even when the drive is mounted directly on a wall outside the enclosure. It is compatible with ATV320U30M3C and ATV320U40M3C drives. The kit is delivered in one package including fixing accessories. This kit is mounted to the lower part of the drive. The Altivar Machine ATV320 series focus on easy integration for simple and advanced machine requirements with proven motor control and connectivity. ATV320 drives are specifically designed for material handling, packaging, textiles, hoisting, mechanical actuators, and material working.Specifications
- Range of Product
- Altivar
- Accessory / separate part category
- Mounting and fixing accessories
- Accessory / Separate Part Type
- Kit for UL type 1 conformity
- product compatibility
- Variable speed drive ATV320...C 3 kW, 200...240 V, three phase, Variable speed drive ATV320...C 4 kW, 200...240 V, three phase
- Accessory / separate part destination
- Variable speed drive
- Range Compatibility
- Altivar Machine ATV320
- Kit composition
- Mechanical device
- Mounting Location
- Underside of drive
- standards
- UL Type 1
- Category
- 22154-ATV320/ATV312/ATV32 ACCESSORIES
- Discount Schedule
- CP4B
- GTIN
- 3606480967191
- Returnability
- Yes
- Country of origin
- ID
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 6.97 in (17.7 cm)
- Package 1 Width
- 7.13 in (18.1 cm)
- Package 1 Length
- 7.24 in (18.4 cm)
- Package 1 Weight
- 33.51 oz (950.0 g)
- Unit Type of Package 2
- S06
- Number of Units in Package 2
- 1
- Package 2 Height
- 28.94 in (73.5 cm)
- Package 2 Width
- 23.62 in (60.0 cm)
- Package 2 Length
- 31.50 in (80.0 cm)
- Package 2 Weight
- 30.75 lb(US) (13.95 kg)
