RPM23BD | Power plug in relay, Harmony, 15A, 2CO, with LED, 24V DC | Square D by Schneider Electric

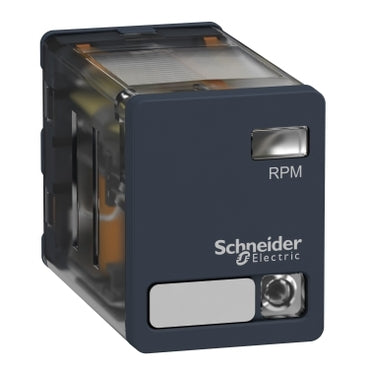

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to RPM23BD

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Square D RPM23BD Documents

Datasheet More Info

Overview

Details for RPM23BD

Power plug in relay, Harmony, 15A, 2CO, with LED, 24V DC

This Power Plug-In Relay reflects Schneider Electric expertise in relay since 1924 by helping to reduce the size of enclosures and at the same time increasing machine reliability. It has large choice of number of contacts for high rated current use Its rated current is 15 A, is controlled with a 24 V AC circuit and has a latching of 2 C/O. They are intendedfor industrial machines, packaging, textile, heating, ventilation and air conditioning system.

Specifications

Range of Product: Harmony Electromechanical Relays
Series name: Power
Product or Component Type: Plug-in relay
Device short name: RPM
Contacts type and composition: 2 C/O
[Uc] control circuit voltage: 24 V DC
[Ithe] conventional enclosed thermal current: 15 A -40…131 °F (-40…55 °C)
Status LED: With
Control Type: Without lockable test button
Utilisation coefficient: 20 %
Shape of pin: Flat
[Ui] rated insulation voltage: 250 V IEC, 300 V CSA, 300 V UL
[Uimp] rated impulse withstand voltage: 4 kV 1.2/50 µs
Contacts material: AgNi
[Ie] rated operational current: 15 A 277 V AC) UL, 15 A 28 V DC) UL, 15 A 250 V AC) NO IEC, 15 A 28 V DC) NO IEC, 7.5 A 250 V AC) NC IEC, 7.5 A 28 V DC) NC IEC
maximum switching voltage: 250 V IEC
Resistive load current: 15 A 250 V AC, 15 A 28 V DC
maximum switching capacity: 3750 VA, 420 W
minimum switching capacity: 170 mW 10 mA, 17 V
operating rate: <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load
Mechanical durability: 10000000 cycles
electrical durability: 100000 cycles resistive
Average coil consumption: 0.85 W
drop-out voltage threshold: >= 0.1 Uc DC
Operate time: 20 ms at nominal voltage
Release time: 20 ms at nominal voltage
Average coil resistance: 640 Ohm at 68 °F (20 °C) +/- 10 %
rated operational voltage limits: 19.2...26.4 V DC
Protection category: RT I
test levels: Level A
Operating position: Any position
pollution degree: 3
Safety reliability data: B10d = 100000
Net Weight: 0.08 lb(US) (0.036 kg)
Device presentation: Complete product
dielectric strength: 1500 V AC between contacts with micro disconnection, 2000 V AC between coil and contact with reinforced, 2000 V AC between poles with basic
standards: UL 508, CSA C22.2 No 14, EN/IEC 61810-1
Product Certifications: EAC, UL, CSA
Ambient Air Temperature for Storage: -40…185 °F (-40…85 °C)
ambient air temperature for operation: -40…131 °F (-40…55 °C)
vibration resistance: 3 gn +/- 1 mm 10…150 Hz)5 cycles in operation, 5 gn +/- 1 mm 10…150 Hz)5 cycles not operating
Degree of protection (Housing only): IP40 conforming to EN/IEC 60529
shock resistance: 15 gnin operation, 30 gnnot operating
Category: 21127-ZELIO ICE CUBE RELAYS
Discount Schedule: CP2
GTIN: 3389119217989
Returnability: Yes
Country of origin: CN
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.06 in (2.7 cm)
Package 1 Width: 0.83 in (2.1 cm)
Package 1 Length: 1.54 in (3.9 cm)
Package 1 Weight: 1.27 oz (36.0 g)
Unit Type of Package 2: CAR
Number of Units in Package 2: 10
Package 2 Height: 1.18 in (3.0 cm)
Package 2 Width: 3.94 in (10.0 cm)
Package 2 Length: 4.53 in (11.5 cm)
Package 2 Weight: 14.14 oz (401.0 g)
Unit Type of Package 3: S01
Number of Units in Package 3: 120
Package 3 Height: 5.91 in (15.0 cm)
Package 3 Width: 5.91 in (15.0 cm)
Package 3 Length: 15.75 in (40.0 cm)
Package 3 Weight: 11.10 lb(US) (5.037 kg)
Warranty: 18 months
