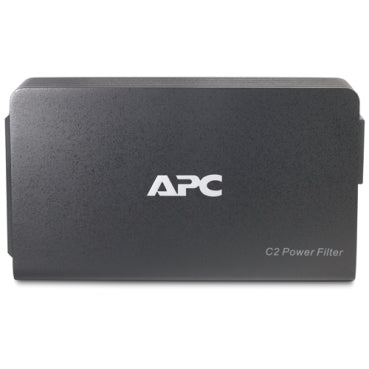

C2 | APC AV C Type 2 Outlet Wall Mount Power Filter, 120V | Square D

Brand: Square DSKU: C2

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to C2

Jump to: Overview & Specifications Reviews

Overview Details for C2

APC AV C Type 2 Outlet Wall Mount Power Filter, 120V

Specifications

Lead time: Usually in Stock
Main Input Voltage: 120 V
Input Connection Type: NEMA 5-15P
Cable length: 2 ft (0.61 m)
number of cables: 1
provided equipment: Detachable power cord, User Manual, Wall-mounting template
Color: Black
Height: 3.70 in (9.4 cm)
Width: 6.69 in (17 cm)
Depth: 1.61 in (4.1 cm)
Net Weight: 1.50 lb(US) (0.68 kg)
Mounting preference: No preference
Mounting Mode: Not rack-mountable
Input Frequency: 50/60 Hz
Switching current capacity: 15 A
Maximum Input Current per Phase: 12 A
Number of power socket outlets: 2
Outlet standard: NEMA 5-15R
Product Certifications: cUL Listed, NOM
standards: FCC part 68, UL 1363, UL 1449
Equipment protection policy: Lifetime : $350000
UL 1449 TVSS Rating: 400
Ambient Air Temperature for Operation: 32…122 °F (0…50 °C)
Operating altitude: 0...10000 ft
Relative Humidity: 0…95 %
Ambient Air Temperature for Storage: 5…113 °F (-15…45 °C)
Storage altitude: 0…50000 ft (0.00…15240.00 m)
Storage Relative Humidity: 0…95 %
Let Through Voltage Rating: 40 V
NM Surge Response Time (ns): 0 ns common mode
EMI/RFI Noise rejection (100 kHz to 10 MHz): 55 dB
Surge energy rating: 1890 J
Category: 11309-APC RESALE PRODUCTS
Discount Schedule: APC1
GTIN: 731304248842
Returnability: No
Country of origin: PH
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 10.00 in (25.4 cm)
Package 1 Width: 1.50 in (3.8 cm)
Package 1 Length: 7.99 in (20.3 cm)
Package 1 Weight: 1.98 lb(US) (0.9 kg)
Number of Units in Package 2: 3
Package 2 Height: 10.25 in (260.35 mm)
Package 2 Width: 8.6 in (218.44 mm)
Package 2 Length: 5 in (127.00 mm)
Package 2 Weight: 7.26 lb(US) (3.29 kg)
Number of Units in Package 3: 360
SCC14: 10731304248849
Warranty: Lifetime
