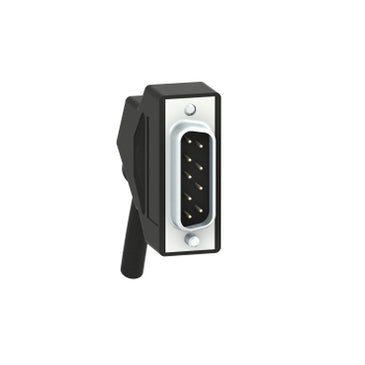

BMXXBC008K | backplane extension cable, Modicon M340, 0.8m | Square D by Schneider Electric

Brand: Square DSKU: BMXXBC008K

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to BMXXBC008K

Jump to: Overview & Specifications Reviews

Overview Details for BMXXBC008K

backplane extension cable, Modicon M340, 0.8m

This cord set is part of the Modicon X80 range, an offer of common modules and installation accessories for M580 and M340 automation platforms. This backplane extension cable is used to chain rack and transport local bus signal. The length of this cable is 0.8m. It is furnished with 2 D-sub (DE-09) male connectors for electrical connection. It is compatible with TSXTLYEX line terminator for connecting the BMXXBE1000. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock. The Modicon X80 range is one important part of EcoStruxure Plant, an open, flexible, reliable, sustainable, safe and secure architecture.

Specifications

Range of Product: Modicon M340 automation platform
Accessory / separate part category: Connection accessories
Accessory / Separate Part Type: Cable
Accessory / separate part designation: Backplane extension cable
Product Compatibility: BMXXBE1000
Accessory / separate part destination: To chain rack and transport local bus signal
Cable length: 2.62 ft (0.8 m)
electrical connection: 2 male connectors SUB-D 9
Category: 18160-MODICON M340
Discount Schedule: PC34
GTIN: 3595863992618
Returnability: Yes
Country of origin: TN
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.18 in (3.0 cm)
Package 1 Width: 7.09 in (18.0 cm)
Package 1 Length: 7.87 in (20.0 cm)
Package 1 Weight: 5.75 oz (163.0 g)
Unit Type of Package 2: S03
Number of Units in Package 2: 30
Package 2 Height: 11.81 in (30.0 cm)
Package 2 Width: 11.81 in (30.0 cm)
Package 2 Length: 15.75 in (40.0 cm)
Package 2 Weight: 10.78 lb(US) (4.89 kg)
Warranty: 18 months
