Documents: ATV340D15N4E

Datasheet More Info

ATV340D15N4E | Variable speed drive, Altivar Machine ATV340, 15 kW Heavy Duty, 400 V, 3 phases, Ethernet | Square D by Schneider Electric

Brand: Square DSKU: ATV340D15N4E

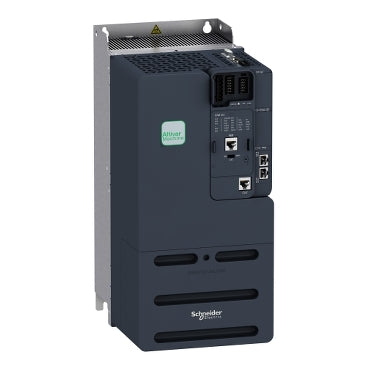

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to ATV340D15N4E

Jump to: Overview & Specifications Reviews

Overview Details for ATV340D15N4E

Variable speed drive, Altivar Machine ATV340, 15 kW Heavy Duty, 400 V, 3 phases, Ethernet

This Altivar 340 variable speed drive can feed 3-phase synchronous and asynchronous motors in open and closed loop control. Altivar Machine ATV340 drives are sized heavy duty as standard. It works at a rated power up to 15kW / 20hp and a rated voltage from 380V to 480V AC. ATV340 has been designed to meet the needs of applications for harsh environments, such as vibration, shock and non-conductive dust and where high temperature resistance up to 60 °C is needed. This product integrates Modbus serial line communication protocols as standard. This drive features multi-protocol Ethernet embedded, it consists of Ethernet IP and Modbus TCP communication interfaces. it weighs 9.5kg and its dimensions are, 180mm wide, 385mm high, 249mm deep. ATV340 incorporates functions and features suitable for the most common applications, including packaging, material handling, material working, hoisting. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions), IEC 60721-3, IEC 61508, IEC 13849-1. It is also CE, UL, CSA, and TÜV certified. Accessories and options (encoder interface modules, I/O expansion modules, communication modules, braking resistors, line chokes, additional EMC filters) are available with Altivar Machine ATV340 drives, depending on the drive rating. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. It is fully integrated inside Schneider Electric’s EcoStruxure Machine through DTM. It is possible to configure, control, and diagnose ATV340 drives directly in SoMachine and SoMove software by means of the same software brick (DTM). It is eco-friendly and complies with directives such as RoHS relating to environmental protection.

Specifications

Range of Product: Altivar Machine ATV340
Product or Component Type: Variable speed drive
Product Specific Application: Machine
variant: Standard version
Mounting Mode: Cabinet mount
Communication Port Protocol: Modbus serial;Modbus TCP;EtherNet/IP
Phase: 3 phase
supply frequency: 50...60 Hz +/- 5 %
[Us] rated supply voltage: 380...480 V - 15...10 %
nominal output current: 32.0 A
motor power kW: 18.5 kW normal duty;15 kW heavy duty
Maximum Horse Power Rating: 25 hp normal duty;20 hp heavy duty
EMC filter: Class C3 EMC filter integrated
IP degree of protection: IP20
discrete input number: 5
discrete input type: PTI programmable as pulse input 0…30 kHz;24 V DC 30 V);DI1...DI5 safe torque off;24 V DC 30 V)3.5 kOhm;programmable
number of preset speeds: 16 preset speeds
discrete output number: 2.0
discrete output type: Programmable output DQ1;DQ2 30 V DC 100 mA
analogue input number: 2
analogue input type: AI1 software-configurable current 0...20 mA 250 Ohm 12 bits;AI1 software-configurable temperature probe or water level sensor;AI1 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bits;AI2 software-configurable voltage - 10...10 V DC 31.5 kOhm 12 bits
analogue output number: 2
analogue output type: Software-configurable voltage AQ1 0...10 V DC 470 Ohm 10 bits;Software-configurable current AQ1 0...20 mA 500 Ohm 10 bits
relay output number: 2
output voltage: <= power supply voltage
relay output type: Relay outputs R1A;Relay outputs R1C 100000 cycles;Relay outputs R2A;Relay outputs R2C 100000 cycles
maximum switching current: Relay output R1C resistive;cos phi = 1 3 A 250 V AC;Relay output R1C resistive;cos phi = 1 3 A 30 V DC;Relay output R1C inductive;cos phi = 0.4 7 ms 2 A 250 V AC;Relay output R1C inductive;cos phi = 0.4 7 ms 2 A 30 V DC;Relay output R2C resistive;cos phi = 1 5 A 250 V AC;Relay output R2C resistive;cos phi = 1 5 A 30 V DC;Relay output R2C inductive;cos phi = 0.4 7 ms 2 A 250 V AC;Relay output R2C inductive;cos phi = 0.4 7 ms 2 A 30 V DC
minimum switching current: Relay output R1B 5 mA 24 V DC;Relay output R2C 5 mA 24 V DC
physical interface: 2-wire RS 485
Connector Type: 3 RJ45
method of access: Slave Modbus RTU;Slave Modbus TCP
Transmission Rate: 4.8 kbit/s;9.6 kbit/s;19.2 kbit/s;38.4 kbit/s
transmission frame: RTU
number of addresses: 1…247
data format: 8 bits;configurable odd;even or no parity
type of polarization: No impedance
4 quadrant operation possible: True
asynchronous motor control profile: Optimized torque mode;Variable torque standard;Constant torque standard
synchronous motor control profile: Reluctance motor;Permanent magnet motor
pollution degree: 2 EN/IEC 61800-5-1
maximum output frequency: 0.599 kHz
acceleration and deceleration ramps: Linear adjustable separately from 0.01...9999 s;S;U or customized
motor slip compensation: Automatic whatever the load;Not available in permanent magnet motor law;Can be suppressed;Adjustable
switching frequency: 2...16 kHz adjustable;7...16 kHz with derating factor
nominal switching frequency: 4 kHz
braking to standstill: By DC injection
brake chopper integrated: True
line current: 37.4 A 380 V normal duty);30.2 A 480 V normal duty);44.9 A 380 V heavy duty);35.7 A 480 V heavy duty)
line current: 44.9 A 380 V without line choke heavy duty);35.7 A 480 V without line choke heavy duty);42.4 A 380 V with external line choke normal duty);34.1 A 480 V with external line choke normal duty);45.5 A 380 V with external line choke heavy duty);36.0 A 480 V with external line choke heavy duty)
Maximum Input Current per Phase: 44.9 A
maximum output voltage: 480 V
apparent power: 28.3 kVA 480 V normal duty);29.7 kVA 480 V heavy duty)
maximum transient current: 42.9 A 60 s normal duty);48 A 60 s heavy duty);52.7 A 2 s normal duty);58 A 2 s heavy duty)
electrical connection: Screw terminal 0.2...2.5 mm² control;Screw terminal 6...25 mm² line side;Screw terminal 6...25 mm² DC bus;Screw terminal 4...25 mm² motor
prospective line Isc: 22 kA
base load current at high overload: 32.0 A
base load current at low overload: 39.0 A
power dissipation in W: Natural convection 18 W 380 V 4 kHz heavy duty);Forced convection 346 W 380 V 4 kHz heavy duty);Natural convection 21 W 380 V 4 kHz normal duty);Forced convection 411 W 380 V 4 kHz normal duty)
electrical connection: Control screw terminal 0.2...2.5 mm² AWG 24...AWG 12;Line side screw terminal 6...25 mm² AWG 8...AWG 3;DC bus screw terminal 6...25 mm² AWG 8...AWG 3;Motor screw terminal 4...25 mm² AWG 10...AWG 3
with safety function Safely Limited Speed (SLS): True
with safety function Safe brake management (SBC/SBT): True
with safety function Safe Operating Stop (SOS): False
with safety function Safe Position (SP): False
with safety function Safe programmable logic: False
with safety function Safe Speed Monitor (SSM): False
with safety function Safe Stop 1 (SS1): True
with sft fct Safe Stop 2 (SS2): False
with safety function Safe torque off (STO): True
with safety function Safely Limited Position (SLP): False
with safety function Safe Direction (SDI): False
protection type: Thermal protection motor;Safe torque off motor;Motor phase loss motor;Thermal protection drive;Safe torque off drive;Overheating drive;Overcurrent drive;Output overcurrent between motor phase and earth drive;Output overcurrent between motor phases drive;Short-circuit between motor phase and earth drive;Short-circuit between motor phases drive;Motor phase loss drive;DC Bus overvoltage drive;Line supply overvoltage drive;Line supply undervoltage drive;Input supply loss drive;Exceeding limit speed drive;Break on the control circuit drive
Width: 7.09 in (180.0 mm)
Height: 15.16 in (385.0 mm)
Depth: 9.80 in (249.0 mm)
Net Weight: 20.94 lb(US) (9.5 kg)
continuous output current: 39 A 4 kHz normal duty;32 A 4 kHz heavy duty
operating altitude: <= 9842.52 ft (3000 m) with current derating above 1000m
operating position: Vertical +/- 10 degree
Product Certifications: UL;CSA;TÜV;EAC;CTick
Marking: CE
Standards: EN/IEC 61800-3;EN/IEC 61800-5-1;IEC 60721-3;IEC 61508;IEC 13849-1;UL 618000-5-1;UL 508C
assembly style: With heat sink
electromagnetic compatibility: Electrostatic discharge immunity test level 3 IEC 61000-4-2;Radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3;Electrical fast transient/burst immunity test level 4 IEC 61000-4-4;1.2/50 µs - 8/20 µs surge immunity test level 3 IEC 61000-4-5;Conducted radio-frequency immunity test level 3 IEC 61000-4-6
environmental class (during operation): Class 3C3 according to IEC 60721-3-3;Class 3S3 according to IEC 60721-3-3
maximum acceleration under shock impact (during operation): 70 m/s² at 22 ms
maximum acceleration under vibrational stress (during operation): 5 m/s² at 9...200 Hz
maximum deflection under vibratory load (during operation): 1.5 mm at 2...9 Hz
permitted relative humidity (during operation): Class 3K5 according to EN 60721-3
volume of cooling air: 33814.63 Gal/hr(US) (128.0 m3/h)
type of cooling: Forced convection
overvoltage category: Class III
regulation loop: Adjustable PID regulator
noise level: 55.6 dB
pollution degree: 2
ambient air transport temperature: -40…158 °F (-40…70 °C)
ambient air temperature for operation: 5…122 °F (-15…50 °C) without derating vertical position);122…140 °F (50…60 °C) with derating factor vertical position)
Ambient Air Temperature for Storage: -40…158 °F (-40…70 °C)
isolation: Between power and control terminals
Category: 22182-ATV340 (1 THRU 25 HP)
Discount Schedule: CP4B
GTIN: 3606480967061
Returnability: Yes
Country of origin: ID
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 13.39 in (34.000 cm)
Package 1 Width: 12.01 in (30.500 cm)
Package 1 Length: 22.05 in (56.000 cm)
Package 1 Weight: 25.06 lb(US) (11.366 kg)
Unit Type of Package 2: P06
Number of Units in Package 2: 2
Package 2 Height: 29.53 in (75.000 cm)
Package 2 Width: 23.62 in (60.000 cm)
Package 2 Length: 31.50 in (80.000 cm)
Package 2 Weight: 78.78 lb(US) (35.732 kg)
