ATV320U22N4B | Variable speed drive, Altivar Machine ATV320, 2.2 kW, 380...500 V, 3 phases, book | Square D by Schneider Electric

Brand: Square DSKU: ATV320U22N4B

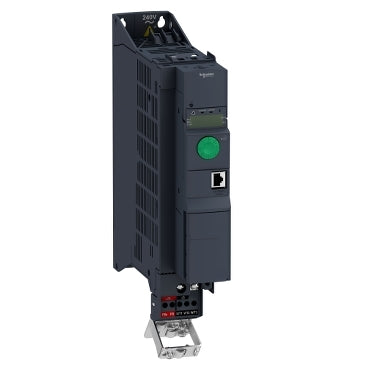

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to ATV320U22N4B

Jump to: Overview & Specifications Reviews

Overview Details for ATV320U22N4B

Variable speed drive, Altivar Machine ATV320, 2.2 kW, 380...500 V, 3 phases, book

This Altivar 320 variable speed drive can feed 3-phase synchronous and asynchronous motors. Its book form factor allows for a simple and compact installation in your automation cabinets. It works at a rated power up to 2.2kW / 3hp and a rated voltage from 380V to 500V AC. Its robust design with IEC 60721-3-3 class 3C3 coated printed circuit boards allows to extend machine availability in harsh environmental conditions, for example at ambient temperatures of up to 60°C without the need of additional cooling. It incorporates functions suitable for the most common applications, including torque and speed accuracy at very low speed, high dynamic performance with flux vector control without sensor and extended frequency range for high-speed motors. It also incorporates parallel connection of motors and special drives using the voltage/frequency ratio and static speed accuracy and energy saving for open-loop synchronous motors. The drive software includes 5 safety functions that help machines meet safety requirements, whether or not they are used in conjunction with a Preventa safety module. These safety functions are configured using SoMove software. Altivar Machine ATV320 was designed for Original Equipment Manufacturers (OEMs) that meets simple and advanced application requirements covered for packaging, material handling, textile, material working, mechanical actuators and hoisting. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions). It is also CE, UL, CSA, NOM, EAC and RCM certified. Mounting accessories and external options (braking resistors, line chokes, motor chokes, additional EMC filters) are available with Altivar Machine ATV320 drives. The type of external accessories and options depends on the drive rating. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. It is fully integrated inside Schneider Electric’s EcoStruxure Machine through DTM. It is possible to configure, control, and diagnose ATV320 drives directly in SoMachine and SoMove software by means of the same software brick (DTM). It is eco-friendly and complies with directives such as RoHS, WEEE, etc.relating to environmental protection.

Specifications

Range of Product: Altivar Machine ATV320
Product or Component Type: Variable speed drive
Product Specific Application: Complex machines
Variant: Standard version
Format of the drive: Book
Mounting Mode: Cabinet mount
communication port protocol: Modbus serial, CANopen
option card: communication module, CANopen, communication module, EtherCAT, communication module, Profibus DP V1, communication module, PROFINET, communication module, Ethernet Powerlink, communication module, EtherNet/IP, communication module, DeviceNet
[Us] rated supply voltage: 380...500 V - 15...10 %
Nominal output current: 5.5 A
motor power kW: 2.2 kW heavy duty
EMC filter: Class C2 EMC filter integrated
IP degree of protection: IP20
Discrete input number: 7
discrete input type: STO safe torque off, 24 V DC1.5 kOhm, DI1...DI6 logic inputs, 24 V DC 30 V), DI5 programmable as pulse input 0…30 kHz, 24 V DC 30 V)
Discrete input logic: Positive logic (source), Negative logic (sink)
Discrete output number: 3
discrete output type: Open collector DQ+ 0…1 kHz 30 V DC 100 mA, Open collector DQ- 0…1 kHz 30 V DC 100 mA
Analogue input number: 3
analogue input type: AI1 voltage 0...10 V DC 30 kOhm 10 bits, AI2 bipolar differential voltage +/- 10 V DC 30 kOhm 10 bits, AI3 current 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration) 250 Ohm 10 bits
Analogue output number: 1
analogue output type: Software-configurable current AQ1 0...20 mA 800 Ohm 10 bits, Software-configurable voltage AQ1 0...10 V DC 470 Ohm 10 bits
relay output type: Configurable relay logic R1A 1 NO 100000 cycles, Configurable relay logic R1B 1 NC 100000 cycles, Configurable relay logic R1C, Configurable relay logic R2A 1 NO 100000 cycles, Configurable relay logic R2C
maximum switching current: Relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 250 V AC, Relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 30 V DC, Relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 250 V AC, Relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 30 V DC, Relay output R2A, R2C resistive, cos phi = 1 5 A 250 V AC, Relay output R2A, R2C resistive, cos phi = 1 5 A 30 V DC
minimum switching current: Relay output R1A, R1B, R1C, R2A, R2C 5 mA 24 V DC
method of access: Slave CANopen
4 quadrant operation possible: True
Asynchronous motor control profile: Voltage/frequency ratio, 5 points, Flux vector control without sensor, standard, Voltage/frequency ratio - Energy Saving, quadratic U/f, Flux vector control without sensor - Energy Saving, Voltage/frequency ratio, 2 points
Synchronous motor control profile: Vector control without sensor
Maximum output frequency: 0.599 kHz
transient overtorque: 170…200 % of nominal motor torque
Acceleration and deceleration ramps: Linear, U, S, CUS, Ramp switching, Acceleration/deceleration ramp adaptation, Acceleration/deceleration automatic stop with DC injection
Motor slip compensation: Automatic whatever the load, Adjustable 0...300 %, Not available in voltage/frequency ratio (2 or 5 points)
switching frequency: 2...16 kHz adjustable, 4...16 kHz with derating factor
Nominal switching frequency: 4 kHz
Braking to standstill: By DC injection
Brake chopper integrated: True
line current: 8.7 A 380 V heavy duty), 6.6 A 500 V heavy duty)
Maximum Input Current per Phase: 8.7 A
Maximum output voltage: 500 V
apparent power: 5.7 kVA 500 V heavy duty)
Network Frequency: 50-60 Hz
Relative symmetric network frequency tolerance: 5 %
Prospective line Isc: 5 kA
Base load current at high overload: 4.8 A
power dissipation in W: Fan 74.0 W 380 V 4 kHz
With safety function Safely Limited Speed (SLS): True
With safety function Safe brake management (SBC/SBT): False
With safety function Safe Operating Stop (SOS): False
With safety function Safe Position (SP): False
With safety function Safe programmable logic: False
With safety function Safe Speed Monitor (SSM): False
With safety function Safe Stop 1 (SS1): True
With sft fct Safe Stop 2 (SS2): False
With safety function Safe torque off (STO): True
With safety function Safely Limited Position (SLP): False
With safety function Safe Direction (SDI): False
protection type: Input phase breaks drive, Overcurrent between output phases and earth drive, Overheating protection drive, Short-circuit between motor phases drive, Thermal protection drive
Width: 2.36 in (60 mm)
Height: 12.80 in (325.0 mm)
Depth: 9.65 in (245.0 mm)
Net Weight: 6.61 lb(US) (3.0 kg)
Operating position: Vertical +/- 10 degree
Product Certifications: CE, ATEX, NOM, GOST, EAC, RCM, KC
Marking: CE, ATEX, UL, CSA, EAC, RCM
standards: EN/IEC 61800-5-1
electromagnetic compatibility: Electrostatic discharge immunity test level 3 IEC 61000-4-2, Radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3, Electrical fast transient/burst immunity test level 4 IEC 61000-4-4, 1.2/50 µs - 8/20 µs surge immunity test level 3 IEC 61000-4-5, Conducted radio-frequency immunity test level 3 IEC 61000-4-6, Voltage dips and interruptions immunity test IEC 61000-4-11
Environmental class (during operation): Class 3C3 according to IEC 60721-3-3, Class 3S2 according to IEC 60721-3-3
Maximum acceleration under shock impact (during operation): 150 m/s² at 11 ms
Maximum acceleration under vibrational stress (during operation): 10 m/s² at 13...200 Hz
Maximum deflection under vibratory load (during operation): 1.5 mm at 2...13 Hz
Permitted relative humidity (during operation): Class 3K5 according to EN 60721-3
Volume of cooling air: 2985.20 Gal/hr(US) (11.3 m3/h)
Overvoltage category: III
Regulation loop: Adjustable PID regulator
speed accuracy: +/- 10 % of nominal slip 0.2 Tn to Tn
Pollution degree: 2
Ambient air transport temperature: -13…158 °F (-25…70 °C)
ambient air temperature for operation: 14…122 °F (-10…50 °C) without derating, 122…140 °F (50…60 °C) with derating factor
Ambient Air Temperature for Storage: -13…158 °F (-25…70 °C)
Category: 22152-ATV320/ATV312/ATV32 (.25 THRU 7.5HP)
Discount Schedule: CP4B
GTIN: 3606480931260
Returnability: Yes
Country of origin: ID
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 3.78 in (9.6 cm)
Package 1 Width: 10.83 in (27.5 cm)
Package 1 Length: 12.80 in (32.5 cm)
Package 1 Weight: 6.05 lb(US) (2.745 kg)
Unit Type of Package 2: P06
Number of Units in Package 2: 20
Package 2 Height: 29.53 in (75 cm)
Package 2 Width: 23.62 in (60 cm)
Package 2 Length: 31.50 in (80 cm)
Package 2 Weight: 151.59 lb(US) (68.76 kg)
