Details for 9001KP38S5R9

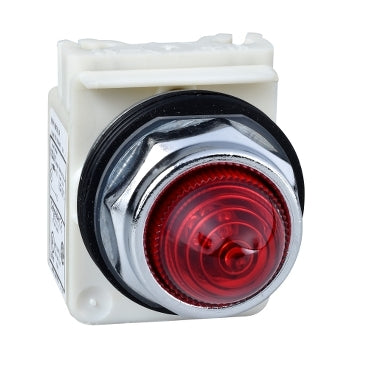

PILOT LIGHT 120V 30MM TYPE K +OPTIONS

Specifications

Range of Product: Harmony 9001K
Product or Component Type: Pilot light
Device short name: 9001K
Bezel material: Chromium plated metal
Mounting diameter: 1.18 in (30 mm)
Shape of signaling unit head: Round
lens type: Domed plastic
Cap/operator or lens colour: Red
light source: incandescent
Bulb base: BA 9s
light block supply: Direct 120 V AC/DC
connections - terminals: Screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
tightening torque: 7.08 lbf.in (0.8 N.m) IEC 60947-1
Shape of screw head: Cross slotted
shape of screw head: Cross slotted
Operating position: Any position
[Ui] rated insulation voltage: 250 V 2)IEC 60947-1
[Uimp] rated impulse withstand voltage: 2.5 kV IEC 60947-1
short-circuit protection: 10 A cartridge fuse IEC 60947-5-1
Light source: Incandescent
[Ith] conventional free air thermal current: 10 A
CAD overall width: 2.13 in (54 mm)
CAD overall height: 2.76 in (70 mm)
CAD overall depth: 1.65 in (42 mm)
[Us] rated supply voltage: 120 V AC/DC
Net Weight: 0.30 lb(US) (0.134 kg)
Device presentation: Complete product
standards: JIS C8201-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-1, UL 508, EN/IEC 60947-1, CSA C22.2 No 14, JIS C 852, JIS C8201-1
Product Certifications: UL 508, NEMA
Protective treatment: TC
Ambient Air Temperature for Storage: -40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation: -13…158 °F (-25…70 °C)
vibration resistance: 7 gn 2…500 Hz)IEC 60068-2-6
shock resistance: 50 gn IEC 60068-2-27
overvoltage category: Class II IEC 61140
IP degree of protection: IP66 IEC 60529
NEMA degree of protection: NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6
Category: 21426-9001 K (NOT KA,KM,KX)
Discount Schedule: CS1
Returnability: No
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 5.08 in (12.903 cm)
Package 1 Width: 2.00 in (5.08 cm)
Package 1 Length: 12.90 in (32.774 cm)
Package 1 Weight: 8.00 oz (226.796 g)
Warranty: 18 months
