XVUZ05 | adjustment pole - black | Square D by Schneider Electric

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to XVUZ05

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Square D XVUZ05 Documents

Datasheet More Info

Overview

Details for XVUZ05

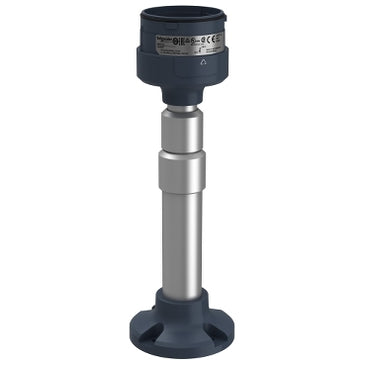

adjustment pole - black

This black fixing plate with support pole is designed as a mounting and fixing accessory for modular tower light. It has a mounting diameter of 60mm and contains base unit, support pole, and horizontal fixing plate. It allows fast and easy replacement of your signaling units via simple push-in terminals. It has a mounting diameter of 60mm with an adjustable pole height of 210-385mm. It complies with CSA, UL, and CE standards and it has IP65 protection index. It makes it ideal for operation in harsh environments.

Specifications

Range of Product: Harmony XVU
Product or Component Type: Modular tower light
accessory / separate part type: Adjustable pole
accessory / separate part category: Mounting and fixing accessory
component name: XVU
mounting diameter: 2.36 in (60 mm)
pole heigth: 8.27…15.16 in (210…385 mm)
Mounting Support: Plate with adjustable pole
product compatibility: Top DC body
material: PBT (polybutylene terephthalate) V-0 UL 94;ABS (acrylonitrile butadiene-styrene);PC (polycarbonate);Aluminium
Housing Colour: Black
Connections - Terminals: Push-in
[Us] Rated Supply Voltage: 24 V AC/DC
Length: 8.26…15.15 in (209.7…384.7 mm)
Net Weight: 0.56 lb(US) (0.253 kg)
Ambient Air Temperature for Storage: -40…158 °F (-40…70 °C)
Ambient air temperature for operation: -13…122 °F (-25…50 °C)
IP degree of protection: IP65
Product Certifications: UL;CE;CSA
Category: 22618-XVU TOWER LIGHTS
Discount Schedule: XV
GTIN: 3606480556005
Returnability: Yes
Country of origin: ID
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 3.58 in (9.1 cm)
Package 1 Width: 10.55 in (26.8 cm)
Package 1 Length: 3.54 in (9.0 cm)
Package 1 Weight: 14.81 oz (420.0 g)
Unit Type of Package 2: S03
Number of Units in Package 2: 12
Package 2 Height: 11.81 in (30.0 cm)
Package 2 Width: 11.81 in (30.0 cm)
Package 2 Length: 15.75 in (40.0 cm)
Package 2 Weight: 13.15 lb(US) (5.963 kg)
Unit Type of Package 3: PAL
Number of Units in Package 3: 96
Package 3 Height: 23.62 in (60.0 cm)
Package 3 Width: 31.50 in (80.0 cm)
Package 3 Length: 27.56 in (70.0 cm)
Package 3 Weight: 106.53 lb(US) (48.32 kg)
