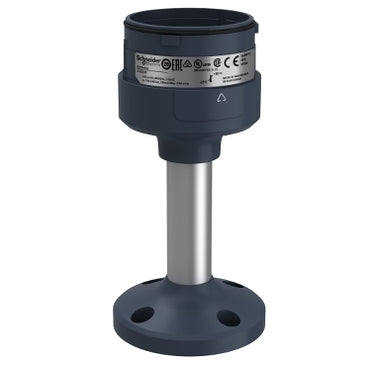

XVUZ02 | Fixing Unit - Plate with 100mm Pole - Black | Square D by Schneider Electric

Brand: Square DSKU: XVUZ02

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to XVUZ02

Jump to: Overview & Specifications Reviews

Overview Details for XVUZ02

Fixing Unit - Plate with 100mm Pole - Black

This black fixing plate with support pole is designed as a mounting and fixing accessory for modular tower light. It has a mounting diameter of 60mm and contains base unit, support pole, and horizontal fixing plate. It allows fast and easy replacement of your signaling units via simple push-in terminals. It has a mounting diameter of 60mm with a pole height of 100mm. It complies with CSA, UL, and CE standards and it has IP65 protection index. It makes it ideal for operation in harsh environments.

Specifications

Range of Product: Harmony XVU
Product or Component Type: Modular tower light
accessory / separate part type: Fixing plate
accessory / separate part category: Mounting and fixing accessory
component name: XVU
mounting diameter: 2.36 in (60 mm)
pole heigth: 3.94 in (100 mm)
Mounting Support: Plate with pole
product compatibility: Top AC body;Top DC body;Top swivel mounting support
material: PBT (polybutylene terephthalate) V-0 UL 94;ABS (acrylonitrile butadiene-styrene);PC (polycarbonate);Aluminium
Housing Colour: Black
Connections - Terminals: Push-in
[Us] Rated Supply Voltage: 24 V AC/DC;110...240 V AC
Length: 4.61 in (117 mm)
Net Weight: 0.29 lb(US) (0.132 kg)
Ambient Air Temperature for Storage: -40…158 °F (-40…70 °C)
Ambient air temperature for operation: -13…122 °F (-25…50 °C)
IP degree of protection: IP65
Product Certifications: CSA;UL;CE
Category: 22618-XVU TOWER LIGHTS
Discount Schedule: XV
GTIN: 3606480556012
Returnability: Yes
Country of origin: ID
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 3.58 in (9.1 cm)
Package 1 Width: 10.55 in (26.8 cm)
Package 1 Length: 3.54 in (9.0 cm)
Package 1 Weight: 10.05 oz (285.0 g)
Unit Type of Package 2: S03
Number of Units in Package 2: 12
Package 2 Height: 11.81 in (30.0 cm)
Package 2 Width: 11.81 in (30.0 cm)
Package 2 Length: 15.75 in (40.0 cm)
Package 2 Weight: 9.88 lb(US) (4.481 kg)
Unit Type of Package 3: PAL
Number of Units in Package 3: 96
Package 3 Height: 23.62 in (60.0 cm)
Package 3 Width: 31.50 in (80.0 cm)
Package 3 Length: 27.56 in (70.0 cm)
Package 3 Weight: 77.96 lb(US) (35.36 kg)
