XVR08B06 | Harmony XVR Rotating Mirror, Blue, 84mm, 24VAC-DC, IP23 IP65 | Square D by Schneider Electric

Brand: Square DSKU: XVR08B06
Square D | XVR08B06

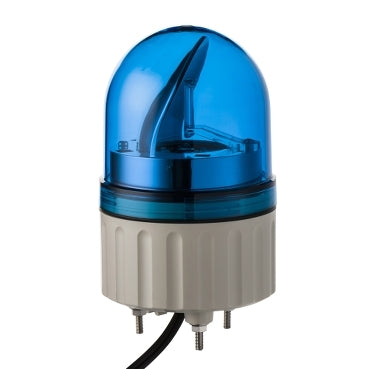

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to XVR08B06
Jump to: Overview & Specifications Reviews

Overview Details for XVR08B06

Harmony XVR Rotating Mirror, Blue, 84mm, 24VAC-DC, IP23 IP65

Harmony XVR Rotating Mirror
  • Light Source: High Luminosity LED, Blue
  • CAD Overall Width: 84mm
  • Rated Supply Voltage: 24V AC/DC
  • Degree of Protection: IP23 conforming to IEC 60529; IP65 (with accessory) conforming to IEC 6029

Specifications

Range of Product
Harmony XVR
Product or Component Type
Prewired rotating mirror beacon
sound signalling
Without
device short name
XVR
mounting diameter
3.31 in (84 mm)
IP degree of protection
IP65 IEC 60529 with accessory);IP23 IEC 60529
[Us] rated supply voltage
24 V AC/DC
light source
High luminosity LED;blue
Material
ABS (acrylonitrile butadiene-styrene) body part;PC globe
CAD overall width
3.31 in (84 mm)
CAD overall depth
3.31 in (84 mm)
Net Weight
0.66 lb(US) (0.3 kg)
Marking
CE
product mounting
By 3 M4 screws
supply voltage limits
19…30 V DC;21.6…26.4 V AC
[Uimp] rated impulse withstand voltage
0.8 kV
Current Consumption
125 mA
flashing frequency
2.3 Hz
Clamping Connection Capacity
0.83 mm²
AWG Gauge
AWG 18
Cable length
19.69 in (500 mm)
Standards
EN 61000-6-2;EN 61000-6-4
Product Certifications
UL
protective treatment
TC
Ambient Air Temperature for Storage
-31…158 °F (-35…70 °C)
Ambient air temperature for operation
14…122 °F (-10…50 °C)
electrical shock protection class
Class II IEC 61140
Category
22617-XVC TOWER LIGHTS
Discount Schedule
XV
GTIN
3606480033025
Returnability
No
Country of origin
ID
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
7.28 in (18.5 cm)
Package 1 Width
3.74 in (9.5 cm)
Package 1 Length
3.74 in (9.5 cm)
Package 1 Weight
13.76 oz (390 g)
Unit Type of Package 2
S03
Number of Units in Package 2
6
Package 2 Height
11.81 in (30 cm)
Package 2 Width
11.81 in (30 cm)
Package 2 Length
15.75 in (40 cm)
Package 2 Weight
6.65 lb(US) (3.017 kg)
Unit Type of Package 3
PAL
Number of Units in Package 3
48
Package 3 Height
23.62 in (60 cm)
Package 3 Width
31.50 in (80 cm)
Package 3 Length
18.90 in (48 cm)
Package 3 Weight
41.27 lb(US) (18.72 kg)
Warranty
18 months
