XVR08B04 | Harmony XVR Rotating Mirror, Red, 84mm, 24VAC-DC, IP23 IP65 | Square D by Schneider Electric
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to XVR08B04
Overview
Details for XVR08B04

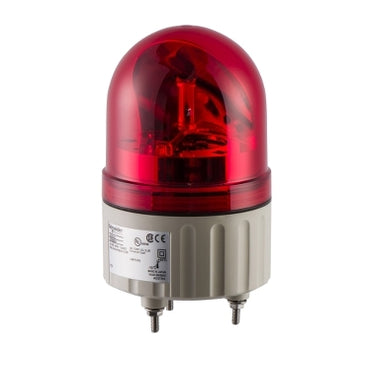

Harmony XVR Rotating Mirror, Red, 84mm, 24VAC-DC, IP23 IP65
Harmony XVR Rotating Mirror- Light Source: High Luminosity LED, Red
- CAD Overall Width: 84mm
- Rated Supply Voltage: 24V AC/DC
- Degree of Protection: IP23 conforming to IEC 60529; IP65 (with accessory) conforming to IEC 6029
Specifications
- Range of Product
- Harmony XVR
- Product or Component Type
- Prewired rotating mirror beacon
- sound signalling
- Without
- device short name
- XVR
- mounting diameter
- 3.31 in (84 mm)
- IP degree of protection
- IP65 IEC 60529 with accessory);IP23 IEC 60529
- [Us] rated supply voltage
- 24 V AC/DC
- light source
- High luminosity LED;red
- Material
- ABS (acrylonitrile butadiene-styrene) body part;PC globe
- CAD overall width
- 3.31 in (84 mm)
- CAD overall depth
- 3.31 in (84 mm)
- Net Weight
- 0.66 lb(US) (0.3 kg)
- Marking
- CE
- product mounting
- By 3 M4 screws
- supply voltage limits
- 19…30 V DC;21.6…26.4 V AC
- [Uimp] rated impulse withstand voltage
- 0.8 kV
- Current Consumption
- 125 mA
- flashing frequency
- 2.3 Hz
- Clamping Connection Capacity
- 0.83 mm²
- AWG Gauge
- AWG 18
- Cable length
- 19.69 in (500 mm)
- Standards
- EN 61000-6-4;EN 61000-6-2
- Product Certifications
- UL
- protective treatment
- TC
- Ambient Air Temperature for Storage
- -31…158 °F (-35…70 °C)
- Ambient air temperature for operation
- 14…122 °F (-10…50 °C)
- electrical shock protection class
- Class II IEC 61140
- Category
- 22617-XVC TOWER LIGHTS
- Discount Schedule
- XV
- GTIN
- 3606480032998
- Returnability
- No
- Country of origin
- ID
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 7.28 in (18.5 cm)
- Package 1 Width
- 3.86 in (9.8 cm)
- Package 1 Length
- 3.86 in (9.8 cm)
- Package 1 Weight
- 13.93 oz (395.0 g)
- Unit Type of Package 2
- S03
- Number of Units in Package 2
- 6
- Package 2 Height
- 11.81 in (30.0 cm)
- Package 2 Width
- 11.81 in (30.0 cm)
- Package 2 Length
- 15.75 in (40.0 cm)
- Package 2 Weight
- 7.17 lb(US) (3.25 kg)
- Warranty
- 18 months
