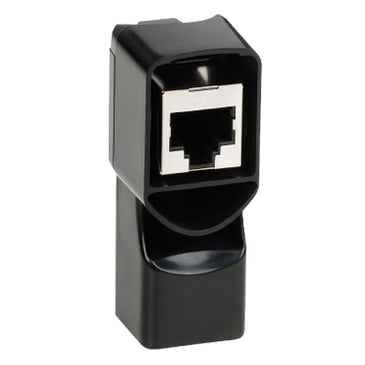

VW3A1105 | RJ45 female-female adaptor to connect LCD Display/Keypad and cable. Not required if using SQD-VW3A1102 | Square D by Schneider Electric

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to VW3A1105

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Square D VW3A1105 Documents

Datasheet More Info

Overview

Details for VW3A1105

RJ45 female-female adaptor to connect LCD Display/Keypad and cable. Not required if using SQD-VW3A1102

RJ45 female-female adaptor

To connect LCD Display/Keypad and cable
Not required if using SQD-VW3A1102 keypad remote mounting kit

This adaptor enables remote graphic display terminal to be connected to several variable speed drives via multidrop link. It consists in 2 female RJ45 connectors.

Specifications

Range of Product: Altivar
accessory / separate part category: Adaptation accessories
accessory / separate part type: Adaptor
kit composition: 1 adaptor RJ45 female/female
Product Compatibility: VW3A1104R...;VW3A1101
accessory / separate part destination: Remote graphic display terminal
Range Compatibility: Altivar 32;Altivar 312 Solar;Altivar 61Q;Altivar 312;Altivar Machine ATV340;Altivar 71Q;Altivar Machine ATV320;Altivar 212;Altivar 71;Altivar 61
Net Weight: 0.02 lb(US) (0.01 kg)
Category: 22135-ATV61-71 ACCESSORIES
Discount Schedule: CP4C
GTIN: 3389118070455
Returnability: Yes
Country of origin: TW
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.36 in (6.0 cm)
Package 1 Width: 0.79 in (2.0 cm)
Package 1 Length: 1.10 in (2.8 cm)
Package 1 Weight: 0.88 oz (25.0 g)
Unit Type of Package 2: S03
Number of Units in Package 2: 100
Package 2 Height: 11.81 in (30.0 cm)
Package 2 Width: 11.81 in (30.0 cm)
Package 2 Length: 15.75 in (40.0 cm)
Package 2 Weight: 7.06 lb(US) (3.203 kg)
Unit Type of Package 3: P06
Number of Units in Package 3: 800
Package 3 Height: 30.31 in (77.0 cm)
Package 3 Width: 31.50 in (80.0 cm)
Package 3 Length: 23.62 in (60.0 cm)
Package 3 Weight: 75.41 lb(US) (34.204 kg)
Warranty: 18 months
