VP228E-15L-L10-U201 | SmartX, Pressure Independent Valve Assembly, 1/2 in, 2-way, 1.0 GPM, PT ports, MP300-SRU spring return open actuator | Schneider Electric

Schneider Electric | VP228E-15L-L10-U201

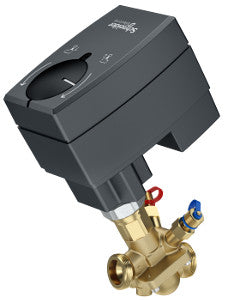

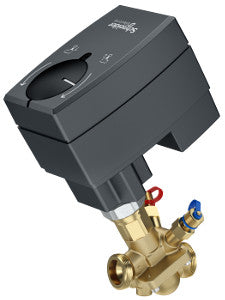

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VP228E-15L-L10-U201
Jump to: DocumentsOverview SpecificationsReviews

Documents and manuals

Schneider Electric VP228E-15L-L10-U201 Documents

Datasheet More Info

Overview

Details for VP228E-15L-L10-U201

SmartX, Pressure Independent Valve Assembly, 1/2 in, 2-way, 1.0 GPM, PT ports, MP300-SRU spring return open actuator

Valve Assembly:
  • Body Size: 1/2 in
  • Configuration: 2-Way
  • Type: Pressure Independent
  • Connection: G external thread
  • Flow Rate: 1 gpm
  • Close-Off Pressure: 232 PSI
  • Actuator Type: Electric
  • Control Signal: Proportional, Floating
  • Control Signal Range: 0 to 10 VDC, 4 to 20 mAdc
  • Loss of Power Type: Spring Return
  • Loss of Power Position: Normally open
  • Power Input Voltage: 24 VAC
  • Leads and Connections: No leads
  • Force: 300 N
  • Mechanical Movement: Linear
  • Additional Features: LED Status Indicator, Valve stroke length selection
  • Protection Rating: IP54
Assembly Components:
  • Valve Body: VP228E-15BQL
  • Valve Range: SmartX PIBCV
  • Valve Linkage: None, tool-less connection
  • Valve End Connection: 9112108015
  • Actuator: MP300-SRU
  • Actuator Range: SmartX Actuator

Product Alert: Not for use with steam

Specifications

Item Number VP228E-15L-L10-U201
Brand Schneider Electric
Control Input Floating Point
Control Valves Type Pressure Independent
End Switch No
Housing NEMA 1
Spring Return Spring Return
Valve Size 15 mm - 2 Way
Voltage
