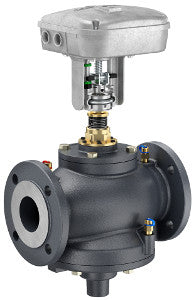

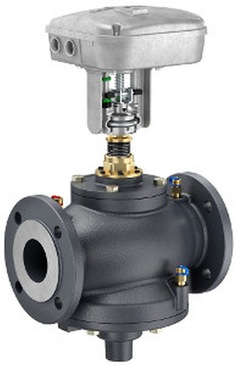

VP220A-80H-176-U231 | SmartX, Pressure Independent Valve Assembly, 3 in, 2-way, 176 GPM, MP500C-SRU proportional spring return actuator | Schneider Electric
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VP220A-80H-176-U231
Overview Details for VP220A-80H-176-U231
SmartX, Pressure Independent Valve Assembly, 3 in, 2-way, 176 GPM, MP500C-SRU proportional spring return actuator
Valve Assembly:- Body Size: 3 in
- Configuration: 2-Way
- Type: Pressure Independent
- Connection: Flanged
- Flow Rate: 176 gpm
- Close-Off Pressure: 232 PSI
- Actuator Type: Electric
- Control Signal: Floating, Proportional
- Control Signal Range: 0 to 10 VDC, 2 to 10 VDC, 4 to 20 mAdc
- Loss of Power Type: Spring Return
- Loss of Power Position: Normally open
- Power Input Voltage: 24 VAC, 24 VDC
- Leads and Connections: No leads
- Force: 500 N
- Mechanical Movement: Linear
- Auxiliary Switch: Available as accessory
- Additional Features: Field selectable floating input signal travel time
- Protection Rating: IP54
- Valve Body: VP220A-80CQH
- Valve Range: SmartX PIBCV
- Valve Linkage: None, tool-less connection
- Actuator: MP500C-SRU
- Actuator Range: SmartX Actuator
Product Alert: Spring return stem up. Not for use with steam
Specifications
| Item Number | VP220A-80H-176-U231 |
| Brand | Schneider Electric |
| Control Input | Floating Point |
| Control Valves Type | Pressure Independent |
| End Switch | Yes |
| Housing | NEMA 1 |
| Spring Return | Spring Return |
| Valve Size | 80 mm - 2 Way |
| Voltage |
