VP220A-125S-395-U161 | SmartX, Pressure Independent Valve Assembly, 5 in, 2-way, 395 GPM, MP2000-NSR proportional non-spring return actuator | Schneider Electric

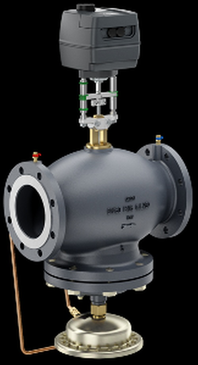

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VP220A-125S-395-U161
Overview
Details for VP220A-125S-395-U161
SmartX, Pressure Independent Valve Assembly, 5 in, 2-way, 395 GPM, MP2000-NSR proportional non-spring return actuator
Valve Assembly:- Body Size: Valve Body (VP221A-125CQS):
- Body Size: 5 in
- Configuration: 2-Way
- Type: Pressure Independent
- Connection: Flanged
- Material Trim: Brass
- Flow Rate Range: 158 to 395 gpm
- Actuator Type: Actuator: (MP2000):
- Actuator Type: Electric
- Control Signal: Proportional
- Control Signal Range: 0 to 10 VDC, 0 to 20 mAdc
- Loss of Power Type: Non-Spring Return
- Loss of Power Position: Fail in place
- Power Input Voltage: 24 VAC
- Leads and Connections: No leads
- Force: 2000 N
- Mechanical Movement: Linear
- Additional Features: LED Status Indicator
- Protection Rating: IP54
- Valve Body: VP221A-125CQS
- Valve Range: SmartX PIBCV
- Valve Linkage: None, tool-less connection
- Actuator: MP2000
- Actuator Range: SmartX Actuator
Product Alert: Not for use with steam
Specifications
Item Number | VP220A-125S-395-U161 |
Brand | Schneider Electric |
Control Input | Floating Point |
Control Valves Type | Pressure Independent |
End Switch | Yes |
freeship | upsground |
Housing | NEMA 1 |
Spring Return | Non-Spring Return |
Valve Size | 125 mm - 2 Way |
Voltage |
