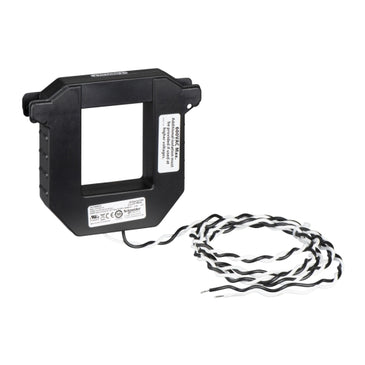

LVCT00403S | LVCT 400A - 0.333 V Output - Split Core CT - 62 mm x 132 mm | Square D by Schneider Electric

Brand: Square DSKU: LVCT00403S

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LVCT00403S

Jump to: Overview & Specifications Reviews

Overview Details for LVCT00403S

LVCT 400A - 0.333 V Output - Split Core CT - 62 mm x 132 mm

This low-voltage split-core current transformer is part of PowerLogic BCPM (Branch Circuit Power Meter). It is Ideal for retrofit applications with Schneider Electric energy meters which accept low voltage current transducer input It is rated for a 400A circuit. 0.333 V output, size 3. Split core opening is 62 mm x 132 mm.

Specifications

Range: PowerLogic
device short name: LVCT
Product or component type: Current transformer
Output voltage: 0.333 V
Electrical connection: Cable: 1.8 m (AWG 18) 600 V
Product destination: BCPM
BCPMSC
Enercept
IEM3000
EM3500
EM4200
EM4900
accessory / separate part category: Measurement accessory
current transformer type: Split core balance
[In] rated current: 400 A
Network frequency: 50/60 Hz
Range compatibility: PowerLogic (PowerLogic BCPM) BCPMA multi-circuit energy meter
PowerLogic (PowerLogic BCPM) BCPMB multi-circuit energy meter
PowerLogic (PowerLogic BCPM) BCPME multi-circuit energy meter
PowerLogic (PowerLogic BCPMSC) BCPMSCA multi-circuit energy meter
PowerLogic (PowerLogic BCPMSC) BCPMSCB multi-circuit energy meter
PowerLogic (PowerLogic BCPMSC) BCPMSCE multi-circuit energy meter
PowerLogic (PowerLogic EM3500) EM3502 energy meter
PowerLogic (PowerLogic EM3500) EM3550 energy meter
PowerLogic (PowerLogic EM3500) EM3555 energy meter
PowerLogic (PowerLogic EM3500) EM3560 energy meter
PowerLogic (PowerLogic EM3500) EM3561 energy meter
PowerLogic (PowerLogic EM4200) EM4235 energy meter
PowerLogic (PowerLogic EM4200) EM4236 energy meter
PowerLogic (PowerLogic EM4900) EM4904 multi-circuit energy meter
PowerLogic (PowerLogic EM4900) EM4908 multi-circuit energy meter
PowerLogic (PowerLogic EM4900) EM4914 multi-circuit energy meter
PowerLogic (PowerLogic EM4900) EM4928 multi-circuit energy meter
Acti 9 (Acti9 iEM3000) iEM3455 energy meter
Acti 9 (Acti9 iEM3000) iEM3465 energy meter
Measurement accuracy: 1 % 10...100 %
Relative humidity: 95 %
Ambient air temperature for operation: -15…60 °C
Ambient air temperature for storage: -40…70 °C
Width: 62 mm internal:
151 mm external:
Depth: 30 mm
Height: 73 mm internal:
132 mm external:
Net weight: 0.58 kg
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 10.2 cm
Package 1 Width: 21.0 cm
Package 1 Length: 25.4 cm
Package 1 Weight: 863.64 g
Unit Type of Package 2: S04
Number of Units in Package 2: 7
Package 2 Height: 30.0 cm
Package 2 Width: 40.0 cm
Package 2 Length: 60.0 cm
Package 2 Weight: 7.36 kg
Warranty: 18 months
