LAD703B | TeSys D Electrical Remote Stop, 24V AC 50/60 Hz, 24V DC | Square D by Schneider Electric

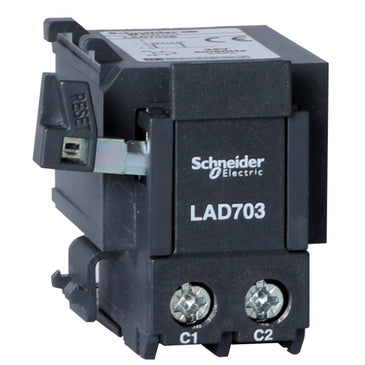

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LAD703B

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Square D LAD703B Documents

Datasheet More Info

Overview

Details for LAD703B

TeSys D Electrical Remote Stop, 24V AC 50/60 Hz, 24V DC

TeSys LRD remote control device for thermal overload relays LRD/LR3D D01-D35, D04L-D32L, D313-D380, D313L-D365L. It provides a 24V AC/DC control circuit to perform a remote tripping and electrical reset. Left-hand side mounting on the thermal overload relay by clip-on. Green Premium compliant (RoHS/REACh).

Specifications

Range: TeSys
Product or component type: Electrical remote stop
device short name: LAD
accessory / separate part category: Electrical accessory
Product compatibility: LRD313...LRD365
LR3D313...LR3D365
LR3D01...D35
LRD01...35
LR9G
[Uc] control circuit voltage: 24 V AC 50/60 Hz
24 V DC
Maximum inrush power in VA: 100 VA
Inrush power in W: 0…100 W
Net weight: 0.09 kg
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 4.9 cm
Package 1 Width: 4.9 cm
Package 1 Length: 5.3 cm
Package 1 Weight: 110.0 g
Unit Type of Package 2: S01
Number of Units in Package 2: 32
Package 2 Height: 15.0 cm
Package 2 Width: 15.0 cm
Package 2 Length: 40.0 cm
Package 2 Weight: 3.705 kg
Warranty: 18 months
