ATV212HD18N4 | Altivar 212 VFD, 25 hp/37 amps, 400/480 VAC Three Phase Input/Three Phase Output, IP20 Housing (Replaces the Altivar21) | Square D by Schneider Electric

Brand: Square DSKU: ATV212HD18N4

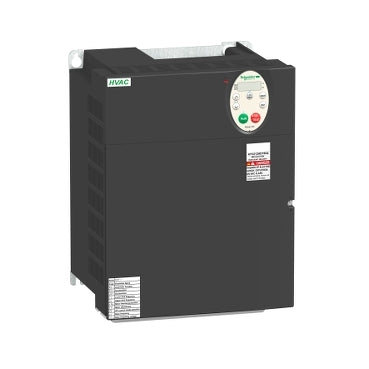

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to ATV212HD18N4

Jump to: Overview & Specifications Reviews

Overview Details for ATV212HD18N4

Altivar 212 VFD, 25 hp/37 amps, 400/480 VAC Three Phase Input/Three Phase Output, IP20 Housing (Replaces the Altivar21)

Altivar 212 VFD

25 HP
Continuous Output Current: 37 amps
AC Line Input Line Voltage: 380/480 VAC Three Phase Input/Output
Enclosure Rating: IP20

The Alitvar 212 drive includes:

3 logic inputs
2 analog inputs
1 analog output
2 relay outputs (with 1 NO and 1 NO/NC contacts)
Integrated 4 digit, 7-segment LED display with a 7 button keypad
RJ45 Modbus port plus a four-screw terminal block for BACnet, Modbus, Metasys N2 and Apogee P1 communication protocols
LonWorks is available in an option card

Specifications

device short name: ATV212
product destination: Asynchronous motors
Phase: 3 phase
motor power kW: 18.5 kW
Maximum Horse Power Rating: 25 hp
supply voltage limits: 323…528 V
supply frequency: 50...60 Hz - 5...5 %
line current: 27.8 A 480 V;34.8 A 380 V
Range of Product: Altivar 212
Product or Component Type: Variable speed drive
Product Specific Application: Pumps and fans in HVAC
Communication Port Protocol: APOGEE FLN;BACnet;LonWorks;Modbus;METASYS N2
[Us] rated supply voltage: 380...480 V - 15...10 %
EMC filter: Class C2 EMC filter integrated
IP degree of protection: IP21
apparent power: 28.2 kVA 380 V
continuous output current: 37 A 380 V;37 A 460 V
maximum transient current: 40.7 A 60 s
speed drive output frequency: 0.5…200 Hz
speed range: 1…10
speed accuracy: +/- 10 % of nominal slip 0.2 Tn to Tn
local signalling: for DC bus energized 1 LED (red)
output voltage: <= power supply voltage
isolation: Electrical between power and control
type of cable: Without mounting kit 1 IEC cable 113 °F (45 °C);copper 90 °C / XLPE/EPR;Without mounting kit 1 IEC cable 113 °F (45 °C);copper 70 °C / PVC;With UL Type 1 kit 3 UL 508 cable 104 °F (40 °C);copper 75 °C / PVC
electrical connection: VIA;VIB;FM;FLA;FLB;FLC;RY;RC;F;R;RES terminal 0.00 in² (2.5 mm²) / AWG 14;L1/R;L2/S;L3/T terminal 0.04 in² (25 mm²) / AWG 3
tightening torque: 5.31 lbf.in (0.6 N.m) VIA;VIB;FM;FLA;FLB;FLC;RY;RC;F;R;RES);39.83 lbf.in (4.5 N.m);40 lb.in L1/R;L2/S;L3/T)
supply: Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %;<10 A overload and short-circuit protection;Internal supply 24 V DC 21…27 V);<200 A overload and short-circuit protection
sampling duration: 2 ms +/- 0.5 ms F discrete;2 ms +/- 0.5 ms R discrete;2 ms +/- 0.5 ms RES discrete;3.5 ms +/- 0.5 ms VIA analog;22 ms +/- 0.5 ms VIB analog
response time: FM 2 ms +/- 0.5 ms analog;FLA;FLC 7 ms +/- 0.5 ms discrete;FLB;FLC 7 ms +/- 0.5 ms discrete;RY;RC 7 ms +/- 0.5 ms discrete
accuracy: +/- 0.6 % VIA) for a temperature variation 60 °C;+/- 0.6 % VIB) for a temperature variation 60 °C;+/- 1 % FM) for a temperature variation 60 °C
linearity error: VIA +/- 0.15 % of maximum value input;VIB +/- 0.15 % of maximum value input;FM +/- 0.2 % output
analogue output type: FM switch-configurable voltage 0...10 V DC 7620 Ohm 10 bits;FM switch-configurable current 0...20 mA 970 Ohm 10 bits
discrete output type: Configurable relay logic FLA;FLC) NO - 100000 cycles;Configurable relay logic FLB;FLC) NC - 100000 cycles;Configurable relay logic RY;RC) NO - 100000 cycles
minimum switching current: 3 mA 24 V DC configurable relay logic
maximum switching current: 5 A 250 V AC resistive cos phi = 1 L/R = 0 ms FL;R);5 A 30 V DC resistive cos phi = 1 L/R = 0 ms FL;R);2 A 250 V AC inductive cos phi = 0.4 L/R = 7 ms FL;R);2 A 30 V DC inductive cos phi = 0.4 L/R = 7 ms FL;R)
discrete input type: F programmable 24 V DC level 1 PLC 4700 Ohm;R programmable 24 V DC level 1 PLC 4700 Ohm;RES programmable 24 V DC level 1 PLC 4700 Ohm
discrete input logic: Positive logic (source) F;R;RES);<= 5 V;>= 11 V;Negative logic (sink) F;R;RES);>= 16 V;<= 10 V
dielectric strength: 3535 V DC between earth and power terminals;5092 V DC between control and power terminals
insulation resistance: >= 1 mOhm 500 V DC for 1 minute
frequency resolution: Display unit 0.1 Hz;Analog input 0.024/50 Hz
Communication Service: Time out setting from 0.1 to 100 s;Read device identification (43);Monitoring inhibitable;Read holding registers (03) 2 words maximum;Write multiple registers (16) 2 words maximum;Write single register (06)
option card: Communication card LonWorks
power dissipation in W: 603 W
air flow: 56533.83 Gal/hr(US) (214 m3/h)
functionality: Mid
specific application: HVAC
Variable speed drive application selection: Building - HVAC Compressor for scroll;Building - HVAC Fan;Building - HVAC Pump
Motor power range AC-3: 15…25 kW 380…440 V 3 phase;15…25 kW 480…500 V 3 phase
motor starter type: Variable speed drive
discrete output number: 2
analogue input number: 2
analogue input type: VIA switch-configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits;VIB configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits;VIB configurable PTC probe 0...6 probes 1500 Ohm;VIA switch-configurable current 0...20 mA 250 Ohm 10 bits
analogue output number: 1
physical interface: 2-wire RS 485
Connector Type: 1 open style;1 RJ45
Transmission Rate: 9600 bps or 19200 bps
transmission frame: RTU
number of addresses: 1…247
data format: 8 bits;1 stop;odd even or no configurable parity
type of polarization: No impedance
asynchronous motor control profile: Voltage/frequency ratio;5 points;Voltage/frequency ratio - Energy Saving;quadratic U/f;Voltage/frequency ratio;2 points;Voltage/frequency ratio;automatic IR compensation (U/f + automatic Uo);Flux vector control without sensor;standard
torque accuracy: +/- 15 %
transient overtorque: 120 % of nominal motor torque +/- 10 % 60 s
acceleration and deceleration ramps: Linear adjustable separately from 0.01 to 3200 s;Automatic based on the load
motor slip compensation: Not available in voltage/frequency ratio motor control;Automatic whatever the load;Adjustable
switching frequency: 6...16 kHz adjustable;8...16 kHz with derating factor
nominal switching frequency: 8 kHz
braking to standstill: By DC injection
Network Frequency: 47.5...63 Hz
prospective line Isc: 22 kA
protection type: Overheating protection drive;Thermal power stage drive;Short-circuit between motor phases drive;Input phase breaks drive;Overcurrent between output phases and earth drive;Overvoltages on the DC bus drive;Break on the control circuit drive;Against exceeding limit speed drive;Line supply overvoltage and undervoltage drive;Line supply undervoltage drive;Against input phase loss drive;Thermal protection motor;Motor phase break motor;With PTC probes motor
Width: 9.65 in (245 mm)
Height: 12.99 in (330 mm)
Depth: 7.48 in (190 mm)
Net Weight: 25.68 lb(US) (11.65 kg)
pollution degree: 2 IEC 61800-5-1
IP degree of protection: IP20 on upper part without blanking plate on cover EN/IEC 61800-5-1;IP20 on upper part without blanking plate on cover EN/IEC 60529;IP21 EN/IEC 61800-5-1;IP21 EN/IEC 60529;IP41 on upper part EN/IEC 61800-5-1;IP41 on upper part EN/IEC 60529
vibration resistance: 1.5 mm 3…13 Hz)EN/IEC 60068-2-6;1 gn 13…200 Hz)EN/IEC 60068-2-8
shock resistance: 15 gn 11 ms IEC 60068-2-27
environmental characteristic: Classes 3C1 IEC 60721-3-3;Classes 3S2 IEC 60721-3-3
noise level: 54 dB 86/188/EEC
operating altitude: 3280.84...9842.52 ft (1000...3000 m) limited to 2000 m for the Corner Grounded distribution network with current derating 1 % per 100 m;<= 3280.84 ft (1000 m) without derating
relative humidity: 5…95 % without condensation IEC 60068-2-3;5…95 % without dripping water IEC 60068-2-3
ambient air temperature for operation: 14…104 °F (-10…40 °C) without derating);104…122 °F (40…50 °C) with derating factor)
operating position: Vertical +/- 10 degree
Product Certifications: CSA;UL;C-tick;NOM 117
Marking: CE
Standards: EN 61800-3 environments 1 category C2;EN 61800-3 category C2;IEC 61800-3;IEC 61800-3 environments 1 category C1;IEC 61800-5-1;IEC 61800-3 environments 2 category C1;IEC 61800-3 environments 2 category C2;IEC 61800-3 environments 1 category C2;EN 55011 class A group 1;EN 61800-3 environments 1 category C3;IEC 61800-3 environments 1 category C3;EN 61800-3;IEC 61800-3 category C3;EN 61800-3 category C3;IEC 61800-3 category C2;EN 61800-5-1;UL Type 1;IEC 61800-3 environments 2 category C3;EN 61800-3 environments 1 category C1;EN 61800-3 environments 2 category C2;EN 61800-3 environments 2 category C3;EN 61800-3 environments 2 category C1
assembly style: With heat sink
electromagnetic compatibility: Electrostatic discharge immunity test level 3 IEC 61000-4-2;Radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3;Electrical fast transient/burst immunity test level 4 IEC 61000-4-4;1.2/50 µs - 8/20 µs surge immunity test level 3 IEC 61000-4-5;Conducted radio-frequency immunity test level 3 IEC 61000-4-6;Voltage dips and interruptions immunity test IEC 61000-4-11
regulation loop: Adjustable PI regulator
Ambient Air Temperature for Storage: -13…158 °F (-25…70 °C)
Category: 22157-ATV212 1 - 25 HP 460 VOLT
Discount Schedule: CP4D
GTIN: 3606480322532
Returnability: Yes
Country of origin: ID
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 11.02 in (28 cm)
Package 1 Width: 15.75 in (40 cm)
Package 1 Length: 11.81 in (30 cm)
Package 1 Weight: 25.54 lb(US) (11.586 kg)
Unit Type of Package 2: P06
Number of Units in Package 2: 4
Package 2 Height: 29.53 in (75 cm)
Package 2 Width: 23.62 in (60 cm)
Package 2 Length: 31.50 in (80 cm)
Package 2 Weight: 130.83 lb(US) (59.344 kg)
Warranty: 18 months
