9001K1L35GH13 | Harmony 9001K Pilot Light, Green, Flush, 10A, 30mm, 24-28V AC/DC | Square D by Schneider Electric

Brand: Square DSKU: 9001K1L35GH13
Square D | 9001K1L35GH13

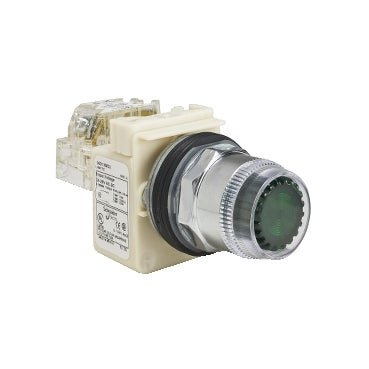

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 9001K1L35GH13

Overview Details for 9001K1L35GH13

Harmony 9001K Pilot Light, Green, Flush, 10A, 30mm, 24-28V AC/DC

Harmony 9001K Pilot Light
  • Mounting Diameter: 30mm
  • Type of Operator: Spring Return
  • Operator Profile: Green flush
  • Light Block Supply: Direct
  • Light Source: Incandescent
  • Rated Supply Voltage: 24-28V AC/DC
  • Degree of Protection: NEMA 1, 2, 3, 3R, 4, 6, 12, 13
This Harmony 9001K, modular illuminated flush green push button is supplied with a full guard. It has a chromium-plated metal bezel and is supplied with a 24V AC/DC integral LED and has 1 x NO + 1 x NC contacts. This illuminated push button with integral LED and full guard provides an ergonomic and visual interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.

Specifications

Range of Product
Harmony 9001K
Product or Component Type
Illuminated push-button
device short name
K
type of operator
spring return
operator profile
Green flush
operator additional information
Plastic guard
bezel material
Metal
mounting diameter
1.18 in (30 mm)
light source
incandescent
light source
Incandescent bulb
bulb base
BA 9s
light block supply
Direct
[Us] rated supply voltage
24...28 V AC/DC
contacts type and composition
1 C/O
connections - terminals
Screw clamp terminals
operating position
Any position
[Ie] rated operational current
10 A;AC-15;10 A;DC-13
contact operation
Standard
device presentation
Complete product
Product Certifications
UL listed file E42259 CCN NKCR;CSA LR 25490 class 3211 03;NEMA;CE
NEMA degree of protection
NEMA 1/2/3/3R/4/6/12/13
Category
21426-9001 K (NOT KA;KM;KX)
Discount Schedule
CS1
GTIN
785901027294
Returnability
No
Country of origin
MX
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
5.08 in (12.903 cm)
Package 1 Width
2.00 in (5.08 cm)
Package 1 Length
12.90 in (32.774 cm)
Package 1 Weight
6.40 oz (181.437 g)
Warranty
18 months
