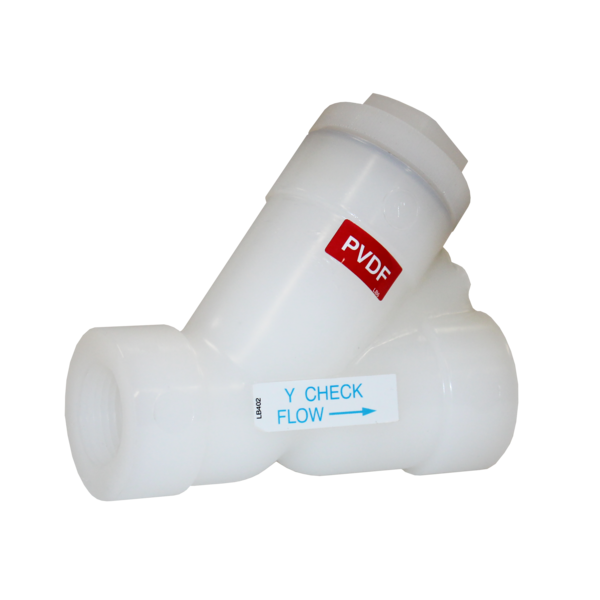

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to YC50100T

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Hayward YC50100T Documents

Datasheet More Info

Overview

Details for YC50100T

1" PVDF Y-Check Valve w/FPM o-ring seat and seal; threaded end connections

YC Series y-check valves are offered in PVC and CPVC. O-rings are FPM standard but EPDM is available. All sizes are either socket, threaded or flanged body style. True union socket or threaded end connections are available. For spring-loaded y-check valves, see the SLC Series. All valves are assembled with silicone free lubricant.

• Available in PVC and CPVC
• Full Flow Design
• Minimum Pressure Drop
• PVC or CPVC Coil to Guide Piston to a Positive Seat
• Minimal Back Pressure Required to Seat Piston

Specifications

Item Number	YC50100T
Brand	Hayward
A	5.10 in
B	1.98 in
Body Material	PVDF
C	3.54 in
Category	Check Valves
Category	Thermoplastic Valves
Class
Cv Coefficient	9.0000
Cv Factor	9
D	2.10 in
End Connection Type	Threaded
End Connection	Threaded
F	0.97 in
G	1.44 in
H	2.25 in
J	3.29 in
K	3.00 in
L	8.97 in
Material	PVDF
Pipe Size	1 in
Pressure Rating Non-Shock	150 psi/ 10 bar
Pressure Rating	150 PSI
Sealing Material	FPM
Seals	FPM
Size	1"
Spring Material	N/A
SubCategory	Y-Check Valves - YC Series
Subtype	YC Series Y Check Valves
Suby Category	Check Valves
