YC50075S | 3/4" PVDF Y-Check Valve w/FPM o-ring seat and seal; IPS socket fusion ends | Hayward

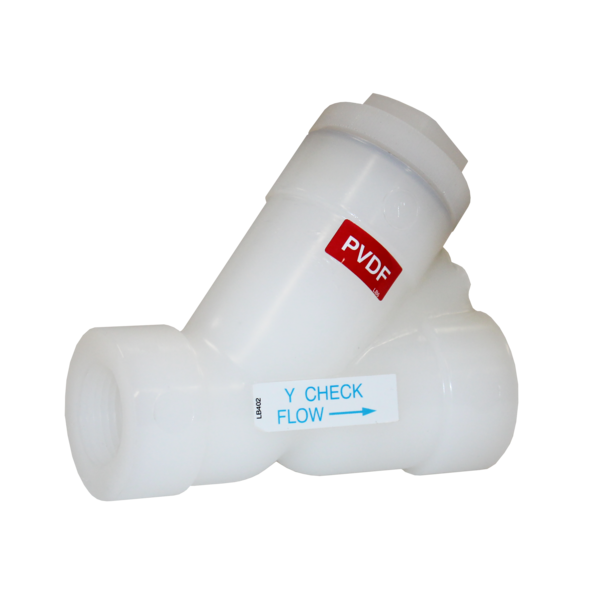

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to YC50075S

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Hayward YC50075S Documents

Datasheet More Info

Overview

Details for YC50075S

3/4" PVDF Y-Check Valve w/FPM o-ring seat and seal; IPS socket fusion ends

YC Series y-check valves are offered in PVC and CPVC. O-rings are FPM standard but EPDM is available. All sizes are either socket, threaded or flanged body style. True union socket or threaded end connections are available. For spring-loaded y-check valves, see the SLC Series. All valves are assembled with silicone free lubricant.

• Available in PVC and CPVC
• Full Flow Design
• Minimum Pressure Drop
• PVC or CPVC Coil to Guide Piston to a Positive Seat
• Minimal Back Pressure Required to Seat Piston

Specifications

Item Number	YC50075S
Brand	Hayward
A	4.11 in
B	1.65 in
Body Material	PVDF
C	2.79 in
Category	Check Valves
Category	Thermoplastic Valves
Class
Cv Coefficient	3.0000
Cv Factor	3.0
D	1.89 in
End Connection Type	Socket/Fusion
End Connection	Socket Fusion
F	0.85 in
G	1.21 in
H	1.75 in
J	2.87 in
K	2.63 in
L	7.42 in
Material	PVDF
Pipe Size	3/4 in
Pressure Rating Non-Shock	150 psi/ 10 bar
Pressure Rating	150 PSI
Sealing Material	FPM
Seals	FPM
Size	3/4"
Spring Material	N/A
SubCategory	Y-Check Valves - YC Series
Subtype	YC Series Y Check Valves
Suby Category	Check Valves
