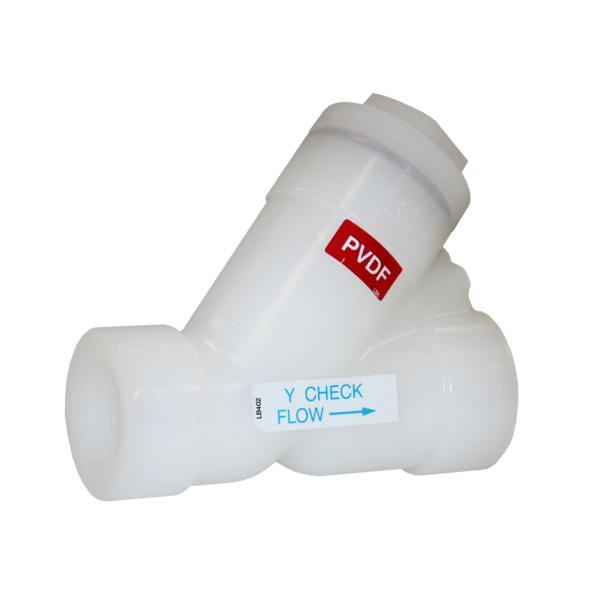

YC50050T | 1/2" PVDF Y-Check Valve w/FPM o-ring seat and seal; threaded end connections | Hayward

Brand: HaywardSKU: YC50050T

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to YC50050T

Jump to: Overview & Specifications Reviews

Overview Details for YC50050T

1/2" PVDF Y-Check Valve w/FPM o-ring seat and seal; threaded end connections

TC Series true union ball check valves are offered in PVC, CPVC, and PP. O-rings and seats are FPM or EPDM. 1/4 in. and 3/8 in. sizes are PVC only and are trim check design. They have socket or threaded end connections. Others up to 2 in. sizes have socket and threaded end connections. All valves are assembled with silicone free lubricant.

• Available in PVC, CPVC and PP
• For Horizontal or Vertical Installation
• 1/2" to 6" are Sure Block Design
• Square Cut Seat for Positive Sealing
• Seats with Minimum Back Pressure
• 1/4" and 3/8" are Trim Check Design
• NSF / ANSI 61 and NSF / ANSI 372 Listed

Specifications

Item Number	YC50050T
Brand	Hayward
A	3.36 in
B	1.46 in
Body Material	PVDF
C	2.25 in
Category	Check Valves
Category	Thermoplastic Valves
Class
Cv Coefficient	0.8000
Cv Factor	0.8
D	1.43 in
End Connection Type	Threaded
End Connection	Threaded
F	0.57 in
G	0.98 in
H	1.50 in
J	2.44 in
K	2.25 in
L	6.64 in
Material	PVDF
Pipe Size	1/2 in
Pressure Rating Non-Shock	150 psi/ 10 bar
Pressure Rating	150 PSI
Sealing Material	FPM
Seals	FPM
Size	1/2"
Spring Material	N/A
SubCategory	Y-Check Valves - YC Series
Subtype	YC Series Y Check Valves
Suby Category	Check Valves
