TW2075F | 3/4" CPVC 3-Way True Union Ball Valves w/FPM o-rings; flanged end connections | Hayward

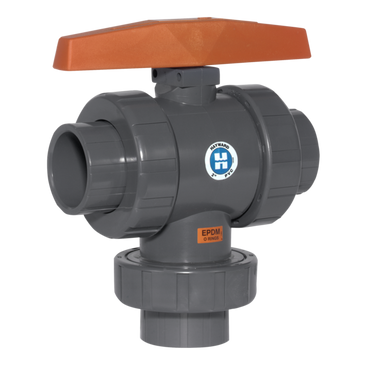

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TW2075F

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Hayward TW2075F Documents

Datasheet More Info

Overview

Details for TW2075F

3/4" CPVC 3-Way True Union Ball Valves w/FPM o-rings; flanged end connections

TW Series 3-Way ball valves are available in PVC and CPVC. O-rings are either FPM or EPDM and the seats are PTFE. Up to 2 in. sizes have socket and threaded end connections. Depending on flow configuration, see our Library, there is a choice of 3 ball types. All TW Series valves are assembled with silicone free lubricant.

• Available in PVC and CPVC
• Position Indicator
• Easily Actuated
• PTFE Seats
• FPM or EPDM O-Rings
• Double O-Ring Stem Seal

Specifications

Item Number	TW2075F
Brand	Hayward
A	2.615 in
B	3.57 in
Body Ball Material	CPVC / TW Ball
Body Material	CPVC
C	0.75 in
Category	Thermoplastic Valves
Category	True Union Ball Valves
Chassis Description	Standard Body
Class	TW Series Three Way Ball Valves
Cv Coefficient	7.0000
Cv Factor	7.0
D	2.97 in
E	4.60 in
End Connection Type	Flanged
End Connection	Flanged
F	7.50 in
G	2.63 in
H	2.82 in
J	3.50 in
Operation Type	Manual
Pipe Size	3/4 in
Sealing Material	FPM
Seals	FPM
Series	TW Series Horizontal Three Way True Union Ball Valves
Size	3/4"
Sub Category	Ball Valves
SubCategory	3-Way Ball Valves - TW Series
Subtype	Ball Valves
Subtype	Three Way True Union Ball Valves
Type	Thermoplastic Valves
