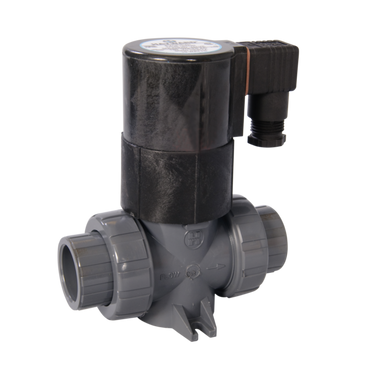

SV50075SV | 3/4""Natural PVDF Solenoid Valve w/FPM o-rings; 120VAC Coil; Socket Fusion (IPS) Ends | Hayward

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SV50075SV

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Hayward SV50075SV Documents

Datasheet More Info

Overview

Details for SV50075SV

3/4""Natural PVDF Solenoid Valve w/FPM o-rings; 120VAC Coil; Socket Fusion (IPS) Ends

SV Series solenoid valves are available in PVC, CPVC or PVDF. Seals are FPM or EPDM. All sizes are offered with socket and threaded end connections. Standard voltage is 120 VAC. Specify optional voltage of 12 or 24 VAC/VDC or 220VAC. Normally closed only.

• Available in PVC, CPVC and PVDF
• Corrosion-Resistant Polyester Coil
• No Pressure Differential Required for Operation
• Both 1/2" Conduit or SJ-Type Cord Electrical Connection
• 120 VAC Standard
• Normally Closed Design

Specifications

Item Number	SV50075SV
Brand	Hayward
Category	N/A
Class	N/A
Cv Coefficient	3.2000
End Connection Type	Socket/Fusion
Material	PVDF
Pipe Size	3/4 in
Pressure Rating	150 PSI
Sealing Material	FPM
Series	SV Series True Union Solenoid Valves
Sub Category	N/A
Subtype	Solenoid Valves
Type	Pressure & Flow Control Valves
Voltage	120 VAC
