FLV21S12FV | 1-1/4" CPVC Sngl Length Filter Vessel, TU w/CPVC Flanged Ends, FPM Seals | Hayward

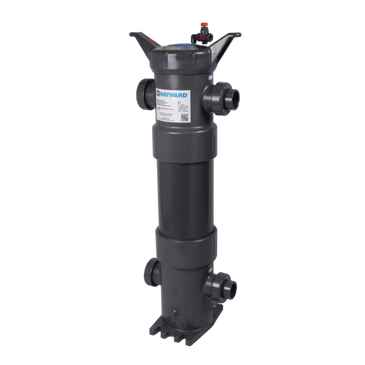

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to FLV21S12FV
Overview Details for FLV21S12FV
1-1/4" CPVC Sngl Length Filter Vessel, TU w/CPVC Flanged Ends, FPM Seals
The NEW FLV Series in PVC and CPVC materials, featuring true-union design in 1-1/4" to 4" sizes, with socket, threaded or flanged ends. Ideal for sodium hypochlorite and bleach processing and handling. FPM seals standard, EPDM optional. Pressure rated for 150psi at 70F non-shock, with flow rates up to 100 GPM. Available in size 1 and size 2 vessels, as well as Simplex, Duplex orTriplex assemblies. Metric (DIN/EN) connections also available.
• Available in PVC or CPVC Materials• True Union End Connections - Socket, Threaded or Flanged
• Hand Removable, Ergonomic Cover with Liquid Displacing Dome
• Vent Valve Included on Cover
• Rated up to 100 GPM Flow Rates
• In-Line or Loop Flow Configurations
• Solid 1-Piece Basket
• Drain Port at Bottom
• Integral Mounting Base
Specifications
| Item Number | FLV21S12FV |
| Brand | Hayward |
| A | 8.16 in 207 mm |
| B | 6.88 in 175 mm |
| Body End Connector Material | CPVC / CPVC |
| Body Material | CPVC |
| C | 13.75 in 349 mm |
| Category | Filters |
| Class | FLV Series PVC/CPVC Bag Filters |
| Configuration | Simplex |
| Connection Type | Flanged |
| D | 7.87 in 200 mm |
| E1 | 10.86 in 276 mm |
| E2 | 4.50 in 114 mm |
| E | 21.62 in 549 mm |
| End Connection Type | Flanged |
| F | 30.50 in 775 mm |
| Flow Rate | 100 GPM |
| G | 17.90 in 455 mm |
| H | 11.75 in 298 mm |
| J | 8.95 in 227.5 mm |
| K | 32.00 in 813 mm |
| L | 9.58 in 243 mm |
| Pipe Size | 1-1/4 in |
| Pressure Rating | 150 PSI |
| Sealing Material | FPM |
| Seals | FPM |
| Series | FLV Series PVC CPVC Bag Filters |
| Size | 1-1/4" |
| Sub Category | Bag Filters & Bags |
| Subtype | Bag Filters & Bags |
| Type | Hayward Filtration® & Straining |
| Vessel Length | Single Length |
