FLV21D20FV | 2" CPVC Duplex Single Length Filter Vessel w/CPVC Flanged Ends, FPM Seals | Hayward

Brand: HaywardSKU: FLV21D20FV

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to FLV21D20FV

Jump to: Overview & Specifications Reviews

Overview Details for FLV21D20FV

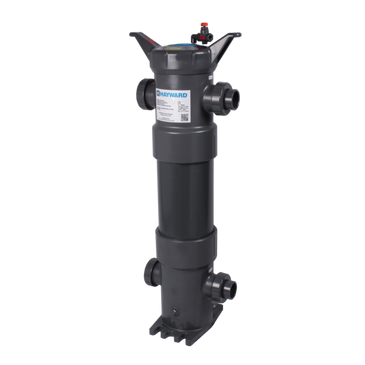

2" CPVC Duplex Single Length Filter Vessel w/CPVC Flanged Ends, FPM Seals

The NEW FLV Series in PVC and CPVC materials, featuring true-union design in 1-1/4" to 4" sizes, with socket, threaded or flanged ends. Ideal for sodium hypochlorite and bleach processing and handling. FPM seals standard, EPDM optional. Pressure rated for 150psi at 70F non-shock, with flow rates up to 100 GPM. Available in size 1 and size 2 vessels, as well as Simplex, Duplex orTriplex assemblies. Metric (DIN/EN) connections also available.

• Available in PVC or CPVC Materials
• True Union End Connections - Socket, Threaded or Flanged
• Hand Removable, Ergonomic Cover with Liquid Displacing Dome
• Vent Valve Included on Cover
• Rated up to 100 GPM Flow Rates
• In-Line or Loop Flow Configurations
• Solid 1-Piece Basket
• Drain Port at Bottom
• Integral Mounting Base

Specifications

Item Number	FLV21D20FV
Brand	Hayward
Body End Connector Material	CPVC / CPVC
Category	Filters
Class	FLV Series PVC/CPVC Bag Filters
Configuration	Duplex
End Connection Type	Flanged
Flow Rate	150 GPM
Pipe Size	2 in
Pressure Rating	150 PSI
Sealing Material	FPM
Series	FLV Series PVC CPVC Bag Filters
Sub Category	Bag Filters & Bags
Subtype	Bag Filters & Bags
Type	Hayward Filtration® & Straining
Vessel Length	Single Length
