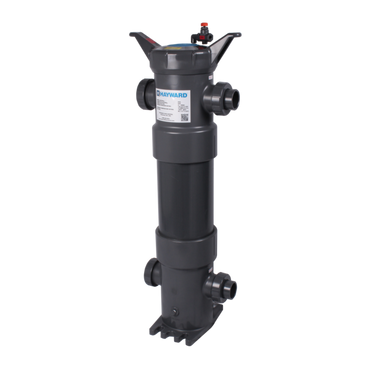

FLV12S20STV | 2" PVC Dble Length Filter Vessel, TU w/PVC Skt/Thrd Ends, FPM Seals | Hayward
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to FLV12S20STV
Overview
Details for FLV12S20STV
2" PVC Dble Length Filter Vessel, TU w/PVC Skt/Thrd Ends, FPM Seals
The NEW FLV Series in PVC and CPVC materials, featuring true-union design in 1-1/4" to 4" sizes, with socket, threaded or flanged ends. Ideal for sodium hypochlorite and bleach processing and handling. FPM seals standard, EPDM optional. Pressure rated for 150psi at 70F non-shock, with flow rates up to 100 GPM. Available in size 1 and size 2 vessels, as well as Simplex, Duplex orTriplex assemblies. Metric (DIN/EN) connections also available.
• Available in PVC or CPVC Materials• True Union End Connections - Socket, Threaded or Flanged
• Hand Removable, Ergonomic Cover with Liquid Displacing Dome
• Vent Valve Included on Cover
• Rated up to 100 GPM Flow Rates
• In-Line or Loop Flow Configurations
• Solid 1-Piece Basket
• Drain Port at Bottom
• Integral Mounting Base
Specifications
Item Number | FLV12S20STV |
Brand | Hayward |
A | 8.16 in 207 mm |
B | 6.88 in 175 mm |
Body End Connector Material | PVC / PVC |
Body Material | PVC |
C | 29.75 in 756 mm |
Category | Filters |
Class | FLV Series PVC/CPVC Bag Filters |
Configuration | Simplex |
Connection Type | Socket/Threaded |
D | 7.87 in 200 mm |
E1 | 10.86 in 276 mm |
E2 | 4.50 in 114 mm |
E | 37.62 in 956 mm |
End Connection Type | Socket/Threaded |
F | 46.50 in 1181 mm |
Flow Rate | 100 GPM |
G | 17.90 in 455 mm |
H | 11.75 in 298 mm |
J | 12.50 in 318 mm |
K | 48.00 in 1219 mm |
Pipe Size | 2 in |
Pressure Rating | 150 PSI |
Sealing Material | FPM |
Seals | FPM |
Series | FLV Series PVC CPVC Bag Filters |
Size | 2" |
Sub Category | Bag Filters & Bags |
Subtype | Bag Filters & Bags |
Type | Hayward Filtration® & Straining |
Vessel Length | Double Length |
