FLV12S15STV | 1-1/2" PVC Dble Length Filter Vessel, TU w/PVC Skt/Thrd Ends, FPM Seals | Hayward

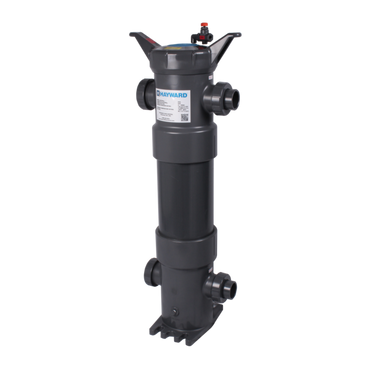

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to FLV12S15STV

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Hayward FLV12S15STV Documents

Datasheet More Info

Overview

Details for FLV12S15STV

1-1/2" PVC Dble Length Filter Vessel, TU w/PVC Skt/Thrd Ends, FPM Seals

The NEW FLV Series in PVC and CPVC materials, featuring true-union design in 1-1/4" to 4" sizes, with socket, threaded or flanged ends. Ideal for sodium hypochlorite and bleach processing and handling. FPM seals standard, EPDM optional. Pressure rated for 150psi at 70F non-shock, with flow rates up to 100 GPM. Available in size 1 and size 2 vessels, as well as Simplex, Duplex orTriplex assemblies. Metric (DIN/EN) connections also available.

• Available in PVC or CPVC Materials
• True Union End Connections - Socket, Threaded or Flanged
• Hand Removable, Ergonomic Cover with Liquid Displacing Dome
• Vent Valve Included on Cover
• Rated up to 100 GPM Flow Rates
• In-Line or Loop Flow Configurations
• Solid 1-Piece Basket
• Drain Port at Bottom
• Integral Mounting Base

Specifications

Item Number	FLV12S15STV
Brand	Hayward
A	8.07 in 205 mm
B	6.88 in 175 mm
Body End Connector Material	PVC / PVC
Body Material	PVC
C	29.75 in 756 mm
Category	Filters
Class	FLV Series PVC/CPVC Bag Filters
Configuration	Simplex
Connection Type	Socket/Threaded
D	7.87 in 200 mm
E1	10.86 in 276 mm
E2	4.50 in 114 mm
E	37.62 in 956 mm
End Connection Type	Socket/Threaded
F	46.50 in 1181 mm
Flow Rate	100 GPM
G	17.90 in 455 mm
H	11.75 in 298 mm
J	12.50 in 318 mm
K	48.00 in 1219 mm
Pipe Size	1-1/2 in
Pressure Rating	150 PSI
Sealing Material	FPM
Seals	FPM
Series	FLV Series PVC CPVC Bag Filters
Size	1-1/2"
Sub Category	Bag Filters & Bags
Subtype	Bag Filters & Bags
Type	Hayward Filtration® & Straining
Vessel Length	Double Length
