SL-2000-P | Conventional | 4-wire | universal voltage | photoelectric duct smoke detector | Dwyer

Conventional, 4-wire, universal voltage, photoelectric duct smoke detector

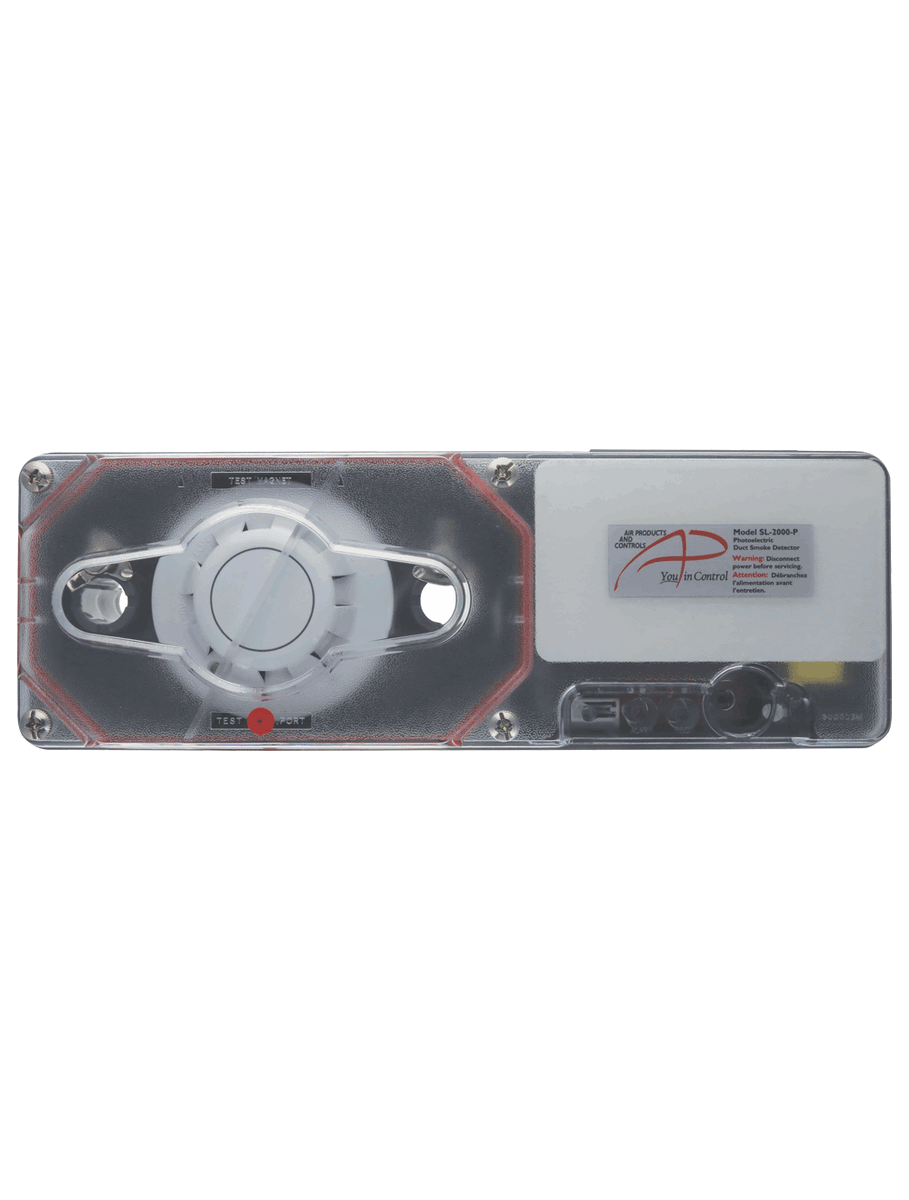

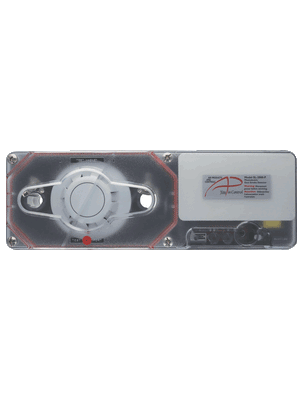

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SL-2000-P

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer SL-2000-P Documents

Instruction Manual SL-2000 SL-53546-021K More Info

Overview

Details for SL-2000-P

See catalog product page for full listing

Conventional | 4-wire | universal voltage | photoelectric duct smoke detector

SERIES SL-2000 DUCT SMOKE DETECTOR

Early Smoke Detection in HVAC Systems

The Series SL-2000 Duct Smoke Detector is crucial for early detection of smoke andproducts of combustion present within HVAC ductwork. This series can be utilized inmany different types of applications including commercial, industrial, and residential.The unit is designed to not only alarm when smoke is detected, but will also utilizerelays to disable fans and blowers. The series comes complete with technician friendly“No-Tools Required" features to make installation and servicing simple and efficient.

Product Applications

Early smoke detection in ductwork
Commercial/Industrial/Residential HVAC
BAS automation

Wide application environment with ability to operate in air speeds of 100 FPM(0.5 m/s) to 4000 FPM (20 m/s)
Simple installation with the patented “No-Tools Required” front or rear installation ofsampling/exhaust tubes
Easy visual status determination with transparent cover to view detector head LED
Reduced installation costs with integrated relays for connecting to alarm devices
Quick verification testing with integrated smoke test port

Specifications

Series: SL-2000 DUCT SMOKE DETECTOR
Category/Type: Air Quality
Type: Smoke Detector
Series: SL-2000 DUCT SMOKE DETECTOR
Sensor Type: Photoelectric or Ionization.
Air Velocity Range: 100 to 4000 FPM.
Ambient Temperature: SL-2000-N: 32°F to 158°F (0°C to 70°C); SL-2000-P: 32°F to 140°F (0°C to 60°C).
Humidity Limits: 85 ±5 % RH (@32 ±2°C; 86 ±3.6°F) Non-condensing/Nonfreezing.
Power Requirements: Standby: 230 VAC (12 mA); 115 VAC (22 mA); 24 VAC (55mA); or 24 VDC (14 mA); Alarm: 230 VAC (18 mA); 115 VAC (32mA); 24 VAC (190mA); or 24 VDC (68 mA).Standby: 230 VAC (12 mA); 115 VAC (22 mA); 24 VAC (55mA); or 24 VDC (14 mA); Alarm: 230 VAC (18 mA); 115 VAC (32mA); 24 VAC (190mA); or 24 VDC (68 mA).
Electrical Rating: Alarm contacts: 2 sets form “C” rated at 10 A resistive @ 115VAC and 1 set form “A” rated at 2 A; Trouble contacts: 1 set form “C” rated at 10 A@ 115 VAC.
Electrical Connections: Screw terminals.
Enclosure: Grey plastic back box; clear plastic cover (Makrolon 94V-0).
Enclosure Rating: SL-2000: NEMA 1; WP-2000: NEMA 3R.
Radioactive Element: For SL-2000-N (Ionization) americium 241; 0.9 Micro-curie; Do not expose to corrosive atmospheres.
Weight: 2.5 lbs.
Approvals: cULus (UL 268A) File # S2829; CSFM Listed (3240-1004:105); MEAAccepted (73-92-E; VOL. 27).
