8C-3 | 1/8 DIN temperature controller | relay output. | Dwyer

1/8 DIN temperature controller, relay output.

Brand: DwyerSKU: 8C-3

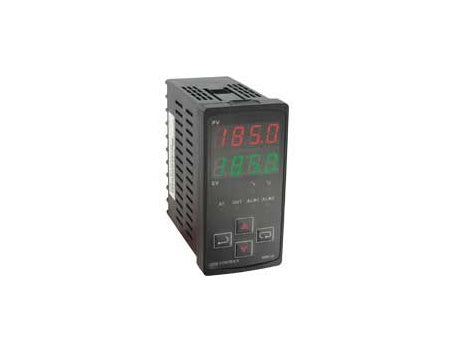

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 8C-3

Jump to: Overview & Specifications Reviews

Overview Details for 8C-3

See catalog product page for full listing

1/8 DIN temperature controller | relay output.

Series 8C 1/8 DIN Temperature Controller

ON/OFF or PID Control, Auto-Tuning, RS-485 Communication

The Series 8C Temperature Controller offers easy-to-use programming menus designed for quick installation. The unit is designed for direct or reverse acting (cooling or heating) control. The Series 8C can be programmed for simple ON/OFF or more complex PID control functions. PID control is supported with manual or auto-tuning. Select relay, voltage pulse, or current output control methods. The controller also includes two additional alarm outputs. The alarm outputs can be configured from 12 different preprogrammed settings.

The temperature controller accepts a variety of thermocouple and RTD inputs. The process value and setpoint value are displayed simultaneously on the large dual LED. Auto-tuning, engineering units (°F or °C) and alarm status is also indicated on the faceplate.

Product Applications

Oven, boiler, or chiller control
Hot plates/melt pots
Food service equipment
Environmental chambers
Packaging equipment

Universal input accepts RTD or thermocouple sensors
On/Off, PID, or manual output control
RS-485 standard on all models

Specifications

Series: 8C 1/8 DIN Temperature Controller
Category/Type: Process Control
Type: Process Controllers
Series: 8C 1/8 DIN Temperature Controller
Inputs: Thermocouple & RTD.
Display: Two 4-digit; 7 segment .38" H (9.53 mm) LED's. PV: red; SV: green.
Accuracy: ±0.25% span; ±1 least significant digit.
Supply Voltage: 100 to 240 VAC; 50/60 Hz.
Power Consumption: 5 VA max.
Operating Temperature: 32 to 122°F (0 to 50°C).
Memory Backup: Nonvolatile memory.
Communication: RS-485 Modbus® ASCII communication protocol.
Control Output Ratings: Relay: SPDT; 5 A @ 250 VAC resistive; Voltage Pulse: 14 V; 10% to -20% (max 40 mA); Current: 4 to 20 mA; Communication: RS-485 Modbus® Communication Protocol.
Weight: 15 oz (425 g).
Agency Approvals: CE; RoHS; cUL; UL.
Front Panel Rating: IP56.
