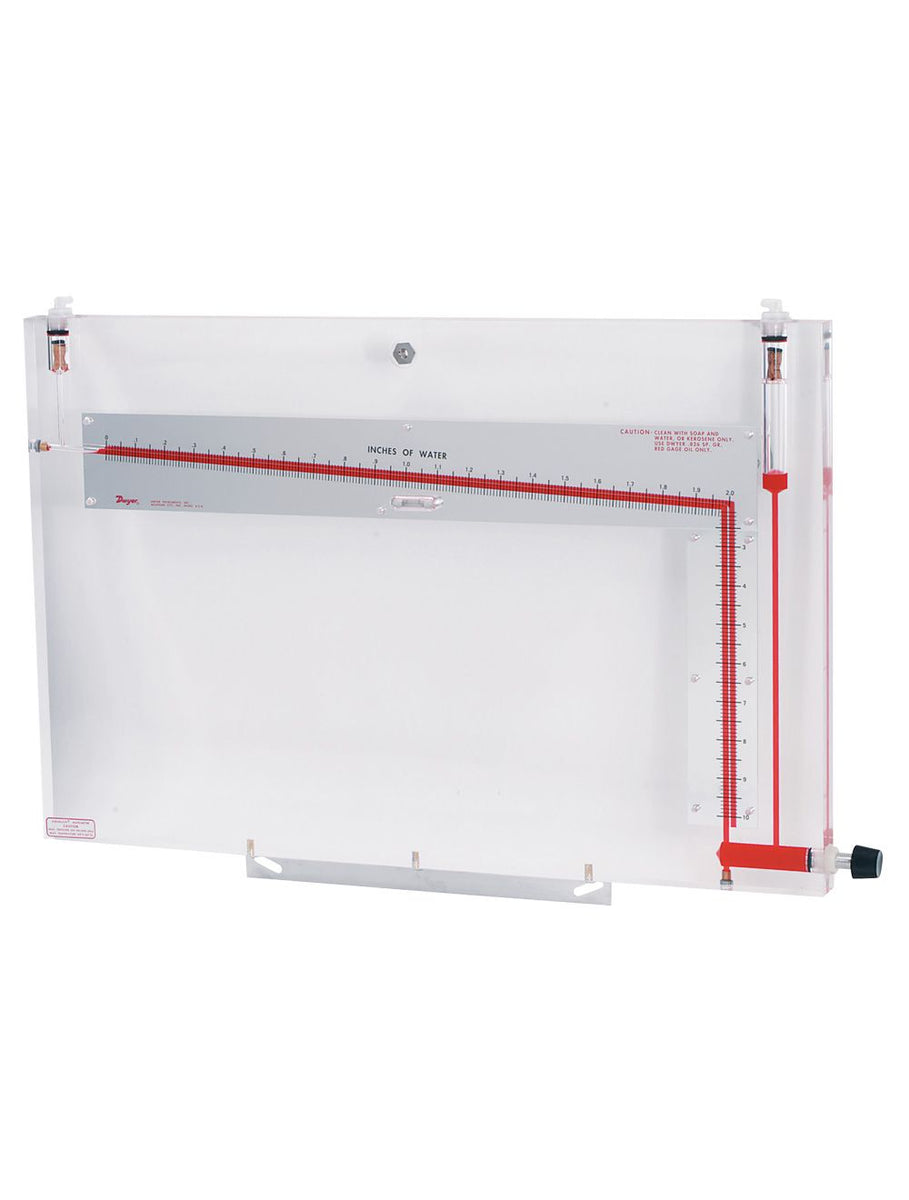

422-5 | Inclined/vertical manometer | inclined range: 0-1.0" w.c. | .01 min. div. | 6-1/2" scale; vertical range 1.1-5" w.c. | min. div. .10 | 4-5/8" scale. | Dwyer
Inclined/vertical manometer, inclined range: 0-1.0" w.c., .01 min. div., 6-1/2" scale; vertical range 1.1-5" w.c., min. div. .10, 4-5/8" scale.
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 422-5
Documents and manuals
Overview
Details for 422-5
See catalog product page for full listing
Inclined/vertical manometer | inclined range: 0-1.0" w.c. | .01 min. div. | 6-1/2" scale; vertical range 1.1-5" w.c. | min. div. .10 | 4-5/8" scale.
Series 420 Durablock® Inclined/Vertical Manometer
Accuracy to ±0.25%
Dwyer® Series 420 Inclined-Vertical Manometer are extremely accurate instruments designed and made especially for precision measurement of low differential pressures in laboratory and test applications. The inclined range bore has a length of 20" to provide ample multiplication of indicating fluid movement in this critical lower part of the range.
NIST CALIBRATION available in Product Configurator.
Click here, if you require a Safety Data Sheet for the Blue Gage Fluid or the Red Gage Fluid.Product Applications
- Low pressure laboratory and test applications
- 1-1/4" THICK ACRYLIC PLASTIC BODY is a solid block, virtually unbreakable, stable and absolutelyfree of the danger of distortion.
- 3/16" BORES, ACCURATE TO ± .0002" are permanently free of bends or crooks, will not require recalibration becauseof distortion.
- GROUND GLASS BUBBLE LEVEL sensitive to 115-125 sec./2 MM. is 1-1/2" long x .375" diameter and providedwith two red linesfor easy visibility and alignment.
- PARALLAX-FREE READING for maximum accuracy and consistency is achieved by simply aligning the meniscuswith its image reflected inthe polished aluminum scale.
- SELECTED GAGE FLUID with high wetability characteristics forms a consistent, well shaped meniscusfor perfect readability.
- O-RING SEALED FLUID LEVEL PLUNGER ADJUSTMENT for easy zeroing.
- PRECISION BUILT to assure device meets the highest standards.
Specifications
- Series
- 420 Durablock® Inclined/Vertical Manometer
- Category/Type
- Pressure
- Type
- Manometers
- Series
- 420 Durablock® Inclined/Vertical Manometer
