Overview
Details for EIPR-V

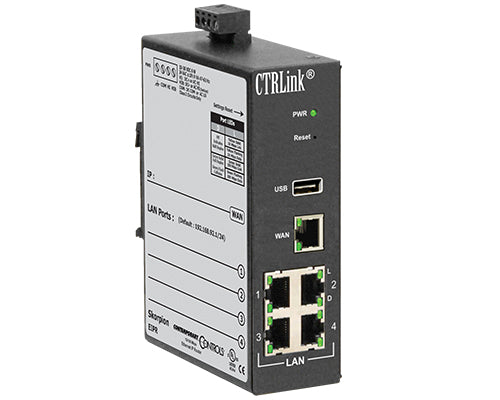

Skorpion VPN Router with Four-port Switch and USB port for wireless connectivity
Description
The EIPR links two 10/100 Mbps Internet Protocol (IPv4) networks — passing appropriate traffic while blocking all other traffic. One network is the local-area-network (LAN); the other is the wide-area-network (WAN). The built-in stateful firewall passes communication initiated on the LAN-side while blocking WAN-side initiated communication. With Port Address Translation (PAT), LAN-side clients can access the Internet. Network Address Translation (NAT) allows a one-to-one translation between LAN-side and WAN-side devices. With Port Forwarding, LAN-side devices can be accessed from the Internet. The EIPR incorporates a four-port Ethernet switch for multiple LAN-side connections. An external Ethernet-based modem — cable or DSL — can be used to connect to the Internet. DSL modems connect via the PPPoE protocol. A USB port allows expansion to wireless networks. The EIPR-E supports Wi-Fi communication; the EIPR-V adds cellular access. With its real-time clock and OpenVPN firmware, the EIPR-V also supports a VPN (virtual-private-network) — so you can obtain secure remote communication — compatible with cloud-VPN service from Contemporary Controls
Features
- Web page configuration
- 10/100 Mbps WAN port
- 4-port 10/100 Mbps Ethernet LAN switch
- PAT, NAT and Port Forwarding
- NAT Loopback
- Remote Router Access
- Whitelist
- Stateful firewall (can be disabled)
- DHCP client (WAN) and DHCP server (LAN)
- Wireless connectivity via USB port
- DIN-rail mounting
- Diagnostic LEDs
- CE Mark, RoHS, UL 508, C22.2 No. 142-M1987
- 24 VAC/VDC powered
Specifications
Item Number | EIPR-V |
Brand | Contemporary Controls |
Ports | 4 |
Speed | 10/100 |
Switch Type | Router |
