EIBA5-100T/R | 5-Port 10/100Mbps DIN-rail Mount BAS Switch | Contemporary Controls

5-port 10BASE-T/100BASE-TX switching hub, DIN-rail mount

Description

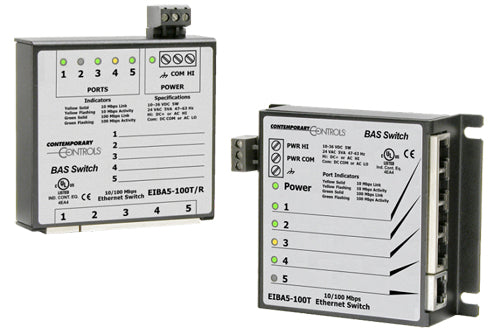

An expanding need exists for Ethernet switches in many Building Automation Systems (BAS). The 5-port Plug-andPlay (PnP) BAS Switch is ideal for low-cost 10/100 Mbps Ethernet switching applications where equipment is mounted in shallow-depth control cabinets. No configuration is needed. Each port automatically sets its data rate and duplex using the Auto-negotiation protocol. Communication matches the capability of the link partner: either 10 Mbps or 100 Mbps and either half- or full-duplex. Each port adapts to either a straight-through or crossover cable using the Auto-MDIX protocol. There is no need to stock crossover cables for switch-to-switch cabling.

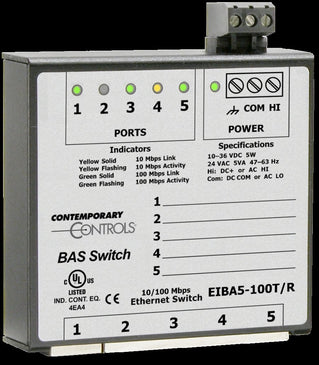

Each unit is housed in a rugged metal enclosure and can be either panel or DIN-rail mounted. A writable label allows listing the location of field devices connected to each port. The half-wave rectified low-voltage power supply allows sharing 24 VAC/VDC with other devices. LEDs for data rate and activity aid in troubleshooting. Unlike office-grade Ethernet equipment which is not adaptable to control panels, the BAS Switch makes an Ethernet installation neat, professional, and dependable.

Simple to Install and Use

• DIN-rail and panel-mountable versions
• Auto-MDIX and auto-negotiated communication
• Industrial temperatures: 0°C to +60°C
• 10BASE-T/100BASE-TX compliant
• Industrial environment EMC compatible
• UL 508 Listed, Industrial Control Equipment
• CE Mark and RoHS compliant
• Diagnostic LEDs
• 10–36 VDC and 24 VAC (± 10%) 47–63 Hz
• Power through a quick-disconnect terminal strip
• Writable label for listing connected devices
