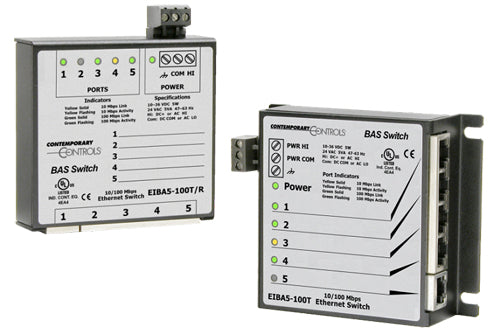

EIBA5-100T | 5-Port 10/100Mbps Panel Mount BAS Switch | Contemporary Controls

5-port 10BASE-T/100BASE-TX switching hub, panel mount

Specifications

Power Requirements: 10–36 VDC 3 W or 24 VAC ±10% 6 VA 47–63 Hz
Operating Temperature: 0°C to 60°C
Storage Temperature: –40°C to 85°C
Relative Humidity: 10–95%, non-condensing
Protection: IP30
Mounting: TS-35 DIN-rail
Shipping Weight: 1 lb (0.45 kg)
Ethernet Communications: IEEE 802.3 10/100 Mbps data rate using RJ-45 connectors, 100 m (max)
LEDs:
Power Green = power OK
Port LEDs
Green = 100 Mbps communication established
Yellow = 10 Mbps communication established
Flashing = data transmissions occurring
Regulatory Compliance: CE Mark; CFR 47, Part 15 Class A; RoHS;
UL 508 Industrial Control Equipment
