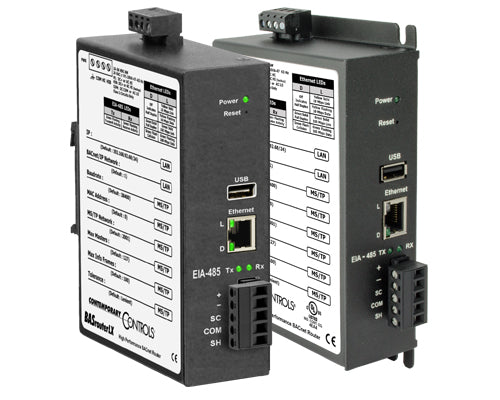

BASRTLX-B | BASrouterLX High Performance BACnet Router DIN-Rail Mount | Contemporary Controls
Documents and manuals
Contemporary Controls BASRTLX-B Documents
Overview
Details for BASRTLX-B
High-performance BACnet multi-network router
Description
The BASrouterLX is a high-performance BACnet router providing stand-alone routing between BACnet networks such as BACnet/IP, BACnet Ethernet (ISO 8802-3), and BACnet MS/TP. Besides its high-speed processor, it has advanced features such as MS/TP Backbone, Backward Routing, Allowlist option for enhanced security, MS/TP slave proxy support (allowing autodiscovery of MS/TP slaves) and MS/TP frame capture and storage for use with Wireshark®. As a BBMD, up to 50 BDT and 147 FDR entries can be supported. The BASrouterLX has two physical communication ports — a 10/100 Mbps BACnet/ IP Ethernet port and an optically-isolated EIA-485 port for MS/TP. Router configuration is accomplished via web pages
Specifications
Item Number | BASRTLX-B |
Brand | Contemporary Controls |
1 Router Type | BACnet |
2 Communication | BACnet IP |
2 Communication | BACnet MSTP |
