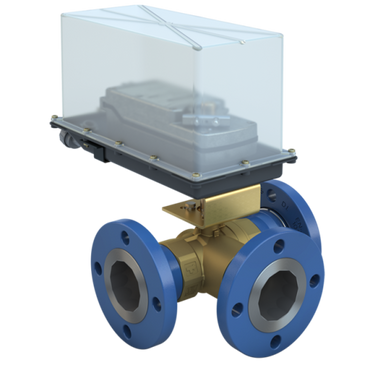

STM3-3-74C/DS120-180-A-WS | 3" | STM Flanged Characterized ball valve | 3way | CV 74 | Damper & Valve actuator | 120/240 Vac | 177 lb-in | on/off | Spring Return | SW | Weather Shield for DS-180 Actuator | Bray

Brand: BraySKU: STM3-3-74C/DS120-180-A-WS

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for STM3-3-74C/DS120-180-A-WS

Product: STM3-3-74C/DS120-180-A-WS
Valve Size: 3"
2-Way / 3-Way: 3-Way
Valve Product Type: Ball Valve
Valve Position: Normally Open Branch to Right
Valve End Connection: ANSI Class 150 Raised Faced Flanged
Assembly Cv: 74
Actuator Control Signal: On/Off
Actuator Action: Spring Return
Fail Position: Fail Open Branch to Right
Actuator Features: Auxiliary Switches
Actuator Power Supply: 120/240 VAC
Actuator Conduit Connection: 3/8" Flex - Convert to 1/2" NPT with M9104-100E & 985-008
Actuator Area Classification: IP54;NEMA 2
Close Off Pressure: 50
Weight: 60.6
