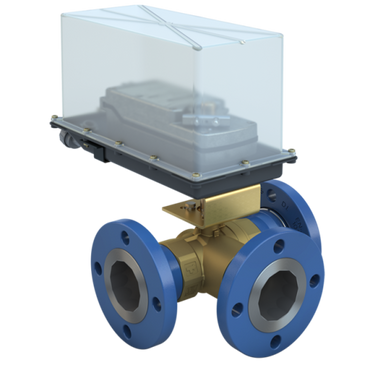

STM3-3-117/DS24-180-WS | 3" | STM Flanged Characterized ball valve | 3way | CV 117 | Damper & Valve actuator | 24 VAC/DC | 177 lb-in | on/off | Spring Return | Weather Shield for DS-180 Actuator | Bray

Brand: BraySKU: STM3-3-117/DS24-180-WS

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for STM3-3-117/DS24-180-WS

Product: STM3-3-117/DS24-180-WS
Valve Size: 3"
2-Way / 3-Way: 3-Way
Valve Product Type: Ball Valve
Valve Position: Normally Open Straight (Branch Closed)
Valve End Connection: ANSI Class 150 Raised Faced Flanged
Assembly Cv: 117
Actuator Control Signal: On/Off
Actuator Action: Spring Return
Fail Position: Fail Open Left to Right
Actuator Power Supply: 24 VAC/DC
Actuator Conduit Connection: 3/8" Flex - Convert to 1/2" NPT with M9104-100E & 985-008
Actuator Area Classification: IP54;NEMA 2
Close Off Pressure: 50
Weight: 59.4
